    F-105G Thunderchief - Revell 1:48

    AdriaN
    AdriaN
    Gold
    Gold


    Posts : 925
    Join date : 2009-08-06
    Age : 35
    Location : St Julians

    F-105G Thunderchief - Revell 1:48 Empty F-105G Thunderchief - Revell 1:48

    Post  AdriaN Wed Nov 23, 2011 10:48 pm

    Got this kit on me stash for almost 2 years. I couldnt help thinking about this beautiful aircraft, so i decided to start!
    Its a BIG kit. 44.7 length & 22.8 Wing span.
    A monogram rebox... unfortunately.
    Detail is pretty good...wheels, tyres, gear doors, seats, engine, petals. Just there are no throttle leavers.  Crying or Very sad
    *Im planning on turning this into a diaorama with the Italeri ground crew set.

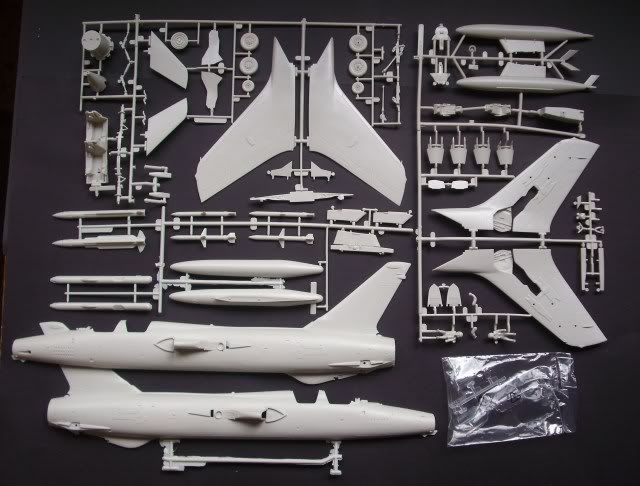

    F-105G Thunderchief - Revell 1:48 IMG_9802

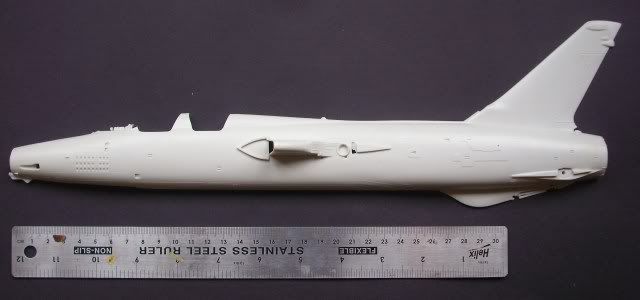

    F-105G Thunderchief - Revell 1:48 IMG_9805

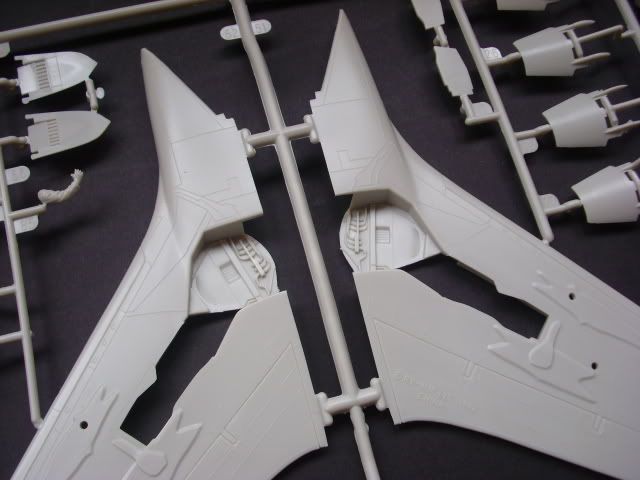

    F-105G Thunderchief - Revell 1:48 IMG_9811

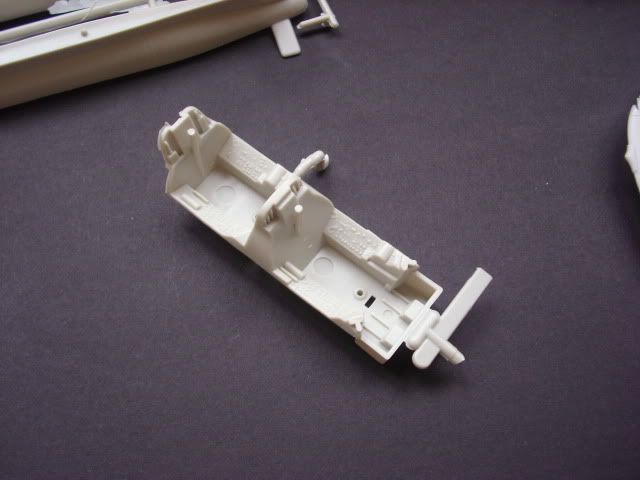

    F-105G Thunderchief - Revell 1:48 IMG_9810

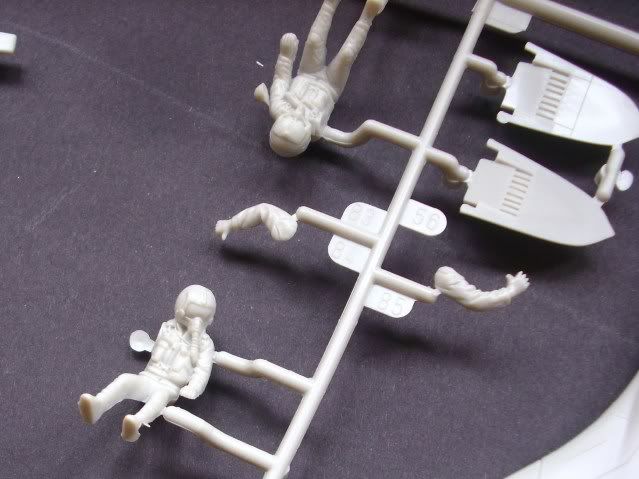

    F-105G Thunderchief - Revell 1:48 IMG_9808

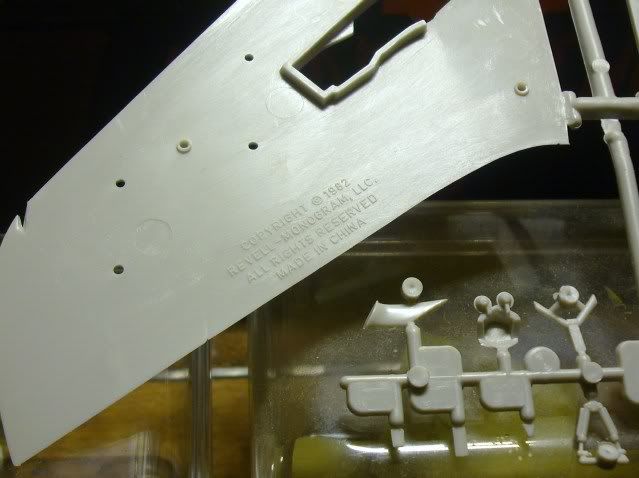

    F-105G Thunderchief - Revell 1:48 IMG_9822

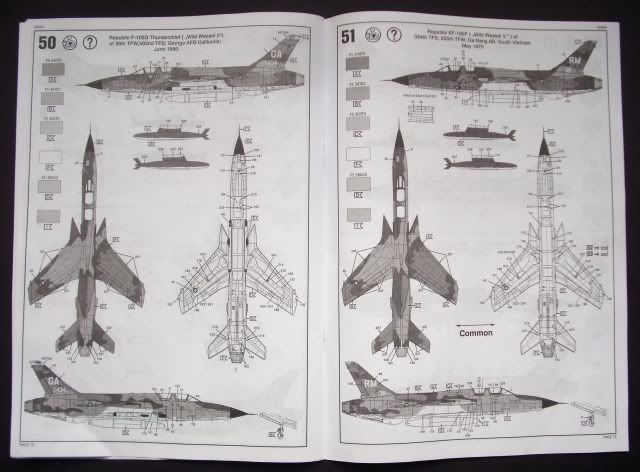

    Too many nice markings to choose from (5 in all)  Crying or Very sad   Question  Exclamation   Question  Idea
    F-105G Thunderchief - Revell 1:48 IMG_9818

    F-105G Thunderchief - Revell 1:48 IMG_9813

    Good decals as always..
    F-105G Thunderchief - Revell 1:48 IMG_9815


    Last edited by AdriaN on Thu Oct 22, 2015 11:22 pm; edited 1 time in total
    AdriaN
    AdriaN
    Gold
    Gold


    Posts : 925
    Join date : 2009-08-06
    Age : 35
    Location : St Julians

    F-105G Thunderchief - Revell 1:48 Empty Re: F-105G Thunderchief - Revell 1:48

    Post  AdriaN Wed Nov 23, 2011 10:52 pm

    A fine brush, steady hand, slow heart rate, deep concentration, some acyrlic retarder, drybrushing, light wash and.... :wub:

    F-105G Thunderchief - Revell 1:48 IMG_9847

    F-105G Thunderchief - Revell 1:48 IMG_9857

    F-105G Thunderchief - Revell 1:48 IMG_9859


    Seats gave most 'trouble'
    F-105G Thunderchief - Revell 1:48 IMG_9874

    Note the joysticks
    F-105G Thunderchief - Revell 1:48 IMG_9870


    Easiest part (pin marks will be covered by the pit) Wink
    F-105G Thunderchief - Revell 1:48 IMG_9876


    All done (around 3 weeks in all)
    F-105G Thunderchief - Revell 1:48 IMG_9877
    skyhigh
    skyhigh
    Best in Show
    Best in Show


    Posts : 4654
    Join date : 2009-07-30
    Age : 62
    Location : Qormi, Malta

    F-105G Thunderchief - Revell 1:48 Empty Re: F-105G Thunderchief - Revell 1:48

    Post  skyhigh Thu Nov 24, 2011 11:18 pm

    Yes go go Adrian , this is a very legendary aircraft...

    one thing I could go for some more detail on the seats ... cheers
    \
    F-105G Thunderchief - Revell 1:48 Seat2010

    F-105G Thunderchief - Revell 1:48 Seat2011

    F-105G Thunderchief - Revell 1:48 Seat2012
    bcauchi
    bcauchi
    Best in Show
    Best in Show


    Posts : 4088
    Join date : 2009-07-30
    Age : 62
    Location : St. Julian's

    F-105G Thunderchief - Revell 1:48 Empty Re: F-105G Thunderchief - Revell 1:48

    Post  bcauchi Sat Nov 26, 2011 2:50 pm

    Lovely work Adrian, what a beautiful plane, you're doing a great job.
    ascomt
    ascomt
    Bronze
    Bronze


    Posts : 208
    Join date : 2009-08-17
    Age : 55
    Location : Zurrieq, Malta

    F-105G Thunderchief - Revell 1:48 Empty Re: F-105G Thunderchief - Revell 1:48

    Post  ascomt Wed Nov 30, 2011 5:13 pm

    Hi Adrian

    those IP's are simply BEEEutifull F-105G Thunderchief - Revell 1:48 B0705

    Please keep us posted.

    Alex
    avatar
    Guest
    Guest


    F-105G Thunderchief - Revell 1:48 Empty Re: F-105G Thunderchief - Revell 1:48

    Post  Guest Thu Dec 01, 2011 6:57 pm

    Nice!!. Really like the cockpit.
    I agree with Marco on the seats, at least try to change the seat belts.
    Ray
    Ray
    Best in Show
    Best in Show


    Posts : 6102
    Join date : 2009-07-21
    Age : 60
    Location : Zurrieq MALTA

    F-105G Thunderchief - Revell 1:48 Empty Re: F-105G Thunderchief - Revell 1:48

    Post  Ray Fri Dec 02, 2011 7:39 am

    AdriAn, very nice work indeed on a legendary bird's cockpit Twisted Evil

    Allow me to post these pics here, as this cockpit was done some 20 odd years ago when I was still not a traitor yet (according to Marco)

    I don't know why, or rather I forgot why I never assembled the bird & ended up with the cockpit sitting in my showcase Suspect


    F-105G Thunderchief - Revell 1:48 Pictur45

    F-105G Thunderchief - Revell 1:48 Pictur46

    F-105G Thunderchief - Revell 1:48 Pictur47

    F-105G Thunderchief - Revell 1:48 Pictur48

    F-105G Thunderchief - Revell 1:48 Pictur50

    F-105G Thunderchief - Revell 1:48 Pictur51

    F-105G Thunderchief - Revell 1:48 Pictur52

    F-105G Thunderchief - Revell 1:48 Pictur53

    F-105G Thunderchief - Revell 1:48 Pictur54

    F-105G Thunderchief - Revell 1:48 Pictur55

    AdriaN
    AdriaN
    Gold
    Gold


    Posts : 925
    Join date : 2009-08-06
    Age : 35
    Location : St Julians

    F-105G Thunderchief - Revell 1:48 Empty Re: F-105G Thunderchief - Revell 1:48

    Post  AdriaN Sat Dec 03, 2011 5:33 pm

    Too late the seats are stuck lol! +they will be covered by the pilots since i am planning on making a diorama

    Ray, is it the same kit/molding as mine? How did you scratch build the throttles? that is troubling me scratch
    Ray
    Ray
    Best in Show
    Best in Show


    Posts : 6102
    Join date : 2009-07-21
    Age : 60
    Location : Zurrieq MALTA

    F-105G Thunderchief - Revell 1:48 Empty Re: F-105G Thunderchief - Revell 1:48

    Post  Ray Sun Dec 04, 2011 4:06 pm

    AdriAn, yes it is the same Monogram kit that you have What a Face

    Re asking me how I scratchbuilt something after 20+ years pale I think you are squeezing my brain cells a bit TOO DRY pale

    Sorry I did not shoot in progress pics at that time Suspect
    avatar
    Guest
    Guest


    F-105G Thunderchief - Revell 1:48 Empty Re: F-105G Thunderchief - Revell 1:48

    Post  Guest Wed Dec 07, 2011 11:38 am

    AdriaN, you lucky trickster! Your 'pit has a floor -had to fill mine in with bits of card; will have to speak to the landlord! Strange, mine was the Revellogram kit also... scratch
    The throttles are easily fabricated from plastic rod, just melt the top end a bit with a hot blade to get the 'lip'.
    Looking forward to seeing the finished article!

    Here's my effort, backdated to an F in the Georgia ANG; a bit of Eduard p/e was added:

    F-105G Thunderchief - Revell 1:48 PC070001
    AdriaN
    AdriaN
    Gold
    Gold


    Posts : 925
    Join date : 2009-08-06
    Age : 35
    Location : St Julians

    F-105G Thunderchief - Revell 1:48 Empty Re: F-105G Thunderchief - Revell 1:48

    Post  AdriaN Wed Dec 07, 2011 10:03 pm

    Very nice cheers I see you scribed the panel lines? the parts fit together like crap Evil or Very Mad what did you use (colour) for the exhaust petals?
    avatar
    Guest
    Guest


    F-105G Thunderchief - Revell 1:48 Empty Re: F-105G Thunderchief - Revell 1:48

    Post  Guest Thu Dec 08, 2011 12:25 am

    Actually this one went together without much grief...toughest bit was modifying the p/e bits for the GIB's instrument panel!
    The exhaust/speedbrake petals were painted Alclad II Steel with a thin spray of Xtracolor Exhaust around the hinges to give a 'high miles' look.
    AdriaN
    AdriaN
    Gold
    Gold


    Posts : 925
    Join date : 2009-08-06
    Age : 35
    Location : St Julians

    F-105G Thunderchief - Revell 1:48 Empty Re: F-105G Thunderchief - Revell 1:48

    Post  AdriaN Thu Dec 08, 2011 1:57 pm

    Cant understand how so many people are saying it goes together like a dream Evil or Very Mad all what im getting are gaps and parts not fitting properly.
    is it the same kit?
    F-105G Thunderchief - Revell 1:48 Rr450410


    Well done on the petals and the rest. I have Model Master steel but its blueish scratch
    avatar
    Guest
    Guest


    F-105G Thunderchief - Revell 1:48 Empty Re: F-105G Thunderchief - Revell 1:48

    Post  Guest Fri Dec 09, 2011 12:48 am

    Well, I can only call it like it happened...it didn't exactly fall together, but I can honestly say I had more 'hours of modelling fun' with a Tamiya F-16C!
    There is something going on though: my kit definitely had nothing where the cockpit floor should have been, but I'm not sure I buy the idea of Revell having two different (presumably near-contemporary) toolings of the same thing -I'll do some research.

    F-105G Thunderchief - Revell 1:48 PC080001

    (The freebie 'Century Series' book by Bert Kinzey was well worth having the kit for!)
    AdriaN
    AdriaN
    Gold
    Gold


    Posts : 925
    Join date : 2009-08-06
    Age : 35
    Location : St Julians

    F-105G Thunderchief - Revell 1:48 Empty Re: F-105G Thunderchief - Revell 1:48

    Post  AdriaN Wed Dec 14, 2011 10:57 pm

    This may go againts most modellers way of thinking. Twisted Evil Even though the model doesnt need any weights, since its not tail heavy, i still like putting in weights to make it feel heavy. I like my models weighing as much as a die cast model. OCD? scratch

    So i decided to pile on some "lead caviar" (lead pellets mixed with pva) in strategic areas of the plane. To secure them even more, i slopped on some mr.surfacer 500 and painted them to prevent them from rusting or coming loose when its washed before painting:


    F-105G Thunderchief - Revell 1:48 IMG_9914

    F-105G Thunderchief - Revell 1:48 IMG_9920

    F-105G Thunderchief - Revell 1:48 IMG_9921




    The cockpit components are all ready and stuck together.
    Just one problem. The back seaters floor is limited & ends just under the panel, leaving a huge hole!
    So i built a box shaped replacement out of plasti card.
    F-105G Thunderchief - Revell 1:48 IMG_1394

    F-105G Thunderchief - Revell 1:48 IMG_1397

    F-105G Thunderchief - Revell 1:48 IMG_1389

    F-105G Thunderchief - Revell 1:48 IMG_1404

    F-105G Thunderchief - Revell 1:48 IMG_1400

    MUCH BETTER!
    F-105G Thunderchief - Revell 1:48 IMG_1408




    Cockpit
    F-105G Thunderchief - Revell 1:48 IMG_1425

    F-105G Thunderchief - Revell 1:48 IMG_1415

    F-105G Thunderchief - Revell 1:48 IMG_1419

    F-105G Thunderchief - Revell 1:48 IMG_1418

    F-105G Thunderchief - Revell 1:48 IMG_1432

    Scratch built throttles (yes i know one is fatter than the other)
    F-105G Thunderchief - Revell 1:48 IMG_9924

    In place
    F-105G Thunderchief - Revell 1:48 IMG_9950
    avatar
    Guest
    Guest


    F-105G Thunderchief - Revell 1:48 Empty Re: F-105G Thunderchief - Revell 1:48

    Post  Guest Sat Dec 17, 2011 10:33 am

    Ah, got it! Your 'pit floor is missing some too -in the first pic (on sprue), you can't see the gap. I thought the missing area was larger, but my memory is definitely failing...
    Anyhoo, I seriously recommend SAC or Aeroclub metal legs for this one, Sir -the basic kit is hefty enough to get wobbly knees with the stock items, if you're weighting yours up she's gonna struggle to stand!
    AdriaN
    AdriaN
    Gold
    Gold


    Posts : 925
    Join date : 2009-08-06
    Age : 35
    Location : St Julians

    F-105G Thunderchief - Revell 1:48 Empty Re: F-105G Thunderchief - Revell 1:48

    Post  AdriaN Sat Dec 17, 2011 11:46 am

    only a small piece of the navigators floor was missing cheers what made you think yours didnt have a floor? Suspect

    Ive gotten alot of suggestions to buy metal gear because the kits are TOO WOBBLY Evil or Very Mad

    http://scaleaircraftconversions.com/moreinfo.cfm?FROM=search&KIT=102
    AdriaN
    AdriaN
    Gold
    Gold


    Posts : 925
    Join date : 2009-08-06
    Age : 35
    Location : St Julians

    F-105G Thunderchief - Revell 1:48 Empty Re: F-105G Thunderchief - Revell 1:48

    Post  AdriaN Sun Dec 18, 2011 1:55 pm

    The wings wheel bay's perimiter for some reason had a huge chunk missing! To big to leave alone. So i decided to try some scratch building with plasticard and with some effort (thought it would be quite challenging) it all worked out well!

    Arrows point it out
    F-105G Thunderchief - Revell 1:48 IMG_9929copy

    both in place
    F-105G Thunderchief - Revell 1:48 IMG_9935

    Thats more like it!
    F-105G Thunderchief - Revell 1:48 IMG_9940

    The empty part will be covered by plastic that passes through the fuselage into both wing bays
    F-105G Thunderchief - Revell 1:48 IMG_9941
    AdriaN
    AdriaN
    Gold
    Gold


    Posts : 925
    Join date : 2009-08-06
    Age : 35
    Location : St Julians

    F-105G Thunderchief - Revell 1:48 Empty Re: F-105G Thunderchief - Revell 1:48

    Post  AdriaN Fri Jan 06, 2012 12:09 pm

    Well this model isnt exactly an easy 'glue & move on kit'. Where ever 2 pieces of plastic met, need filling and sanding (the entire model basically)
    I will be rescribing the model and this model has enough panel lines to go around the world! Its my first time scribing and i recently experimented on the elevators.


    Some force to keep this beast together
    F-105G Thunderchief - Revell 1:48 IMG_9953

    Something seriously wrong here Evil or Very Mad
    F-105G Thunderchief - Revell 1:48 IMG_9960

    F-105G Thunderchief - Revell 1:48 IMG_9963

    F-105G Thunderchief - Revell 1:48 IMG_9961




    Ladies and gentlemen, we have what looks like a Thud! cheers The elevators and nose are dry fitted..
    F-105G Thunderchief - Revell 1:48 IMG_9982

    F-105G Thunderchief - Revell 1:48 IMG_9984
    bcauchi
    bcauchi
    Best in Show
    Best in Show


    Posts : 4088
    Join date : 2009-07-30
    Age : 62
    Location : St. Julian's

    F-105G Thunderchief - Revell 1:48 Empty Re: F-105G Thunderchief - Revell 1:48

    Post  bcauchi Sat Jan 07, 2012 3:26 pm

    Great work Adrian looking good.
    slingshot392
    slingshot392
    Silver
    Silver


    Posts : 467
    Join date : 2010-02-19
    Age : 61
    Location : Minnesota, USA

    F-105G Thunderchief - Revell 1:48 Empty Re: F-105G Thunderchief - Revell 1:48

    Post  slingshot392 Sun Jan 08, 2012 7:55 am

    Great work on your 105 so far! With all of the weight you added, metal landing gear would pretty much be a must as I have read that the landing gear is pretty wobbly built as is. I have the D and I was thinking of putting it on a pylon fully loaded just for that reason.
    AdriaN
    AdriaN
    Gold
    Gold


    Posts : 925
    Join date : 2009-08-06
    Age : 35
    Location : St Julians

    F-105G Thunderchief - Revell 1:48 Empty Re: F-105G Thunderchief - Revell 1:48

    Post  AdriaN Mon Jan 09, 2012 12:00 am

    I will be rescribing the model. pale ive been experimenting on the elevators. but i need dymo tape to continue with the rest of the model. Its my first time rescribing! Yes ive been told that it is VERY wobbly.

    i think i will be doing this model on a clean loadout, maybe with just a fuel tank on the centre line.
    AdriaN
    AdriaN
    Gold
    Gold


    Posts : 925
    Join date : 2009-08-06
    Age : 35
    Location : St Julians

    F-105G Thunderchief - Revell 1:48 Empty Re: F-105G Thunderchief - Revell 1:48

    Post  AdriaN Wed Jan 18, 2012 1:40 am

    bcauchi wrote:Great work Adrian looking good.

    Brian, I tried Inkspot & 2 other places in san gwann... No one has Dymo tape (some dont even know what it is) Evil or Very Mad pale
    AdriaN
    AdriaN
    Gold
    Gold


    Posts : 925
    Join date : 2009-08-06
    Age : 35
    Location : St Julians

    F-105G Thunderchief - Revell 1:48 Empty Re: F-105G Thunderchief - Revell 1:48

    Post  AdriaN Thu Oct 22, 2015 11:13 pm

    GUESS WHO'S BACK?? lol!

    After sitting on the side of my desk for 3 years and gathering dust and an occasional handle... i decided to finish this model after the success of my Bird Dog!

    The model was re-scribed... and i hated it all. Mad Evil or Very Mad  around 80% of panel lines were actually scribed and most were scribed free hand without dymo tape.


    I messed up a lot and quite a few panel lines came anything but straight.  Evil or Very Mad  The scriber often ended up scribing gashes on the plastic because it exceeded beyond the panel that needed scribing. These mistakes were filled with mr surfacer and sanded. I had A LOT of these gashes to fill and i didnt  even get a all of them.
    F-105G Thunderchief - Revell 1:48 IMG_2913

    F-105G Thunderchief - Revell 1:48 IMG_2914


    After hours of scribing, the model was sprayed with vallejo primer and this really brought out the new engraved panel lines cheers
    F-105G Thunderchief - Revell 1:48 IMG_2924c

    F-105G Thunderchief - Revell 1:48 IMG_2922c

    F-105G Thunderchief - Revell 1:48 IMG_2929c

    F-105G Thunderchief - Revell 1:48 IMG_2927c

    F-105G Thunderchief - Revell 1:48 IMG_2926c
    bcauchi
    bcauchi
    Best in Show
    Best in Show


    Posts : 4088
    Join date : 2009-07-30
    Age : 62
    Location : St. Julian's

    F-105G Thunderchief - Revell 1:48 Empty Re: F-105G Thunderchief - Revell 1:48

    Post  bcauchi Fri Oct 23, 2015 5:56 pm

    I don;t think its bad at all for a first scribing exercise, you did not exactly choose an easy subject. Also you are taking really close up shots, that will make any mistake look huge.

    Sponsored content


    F-105G Thunderchief - Revell 1:48 Empty Re: F-105G Thunderchief - Revell 1:48

    Post  Sponsored content


      Current date/time is Thu Mar 28, 2024 11:23 pm
