    Re: Me Bf109F details

    Post  iCocker on Fri Jan 11, 2013 9:43 am

    Is the cockpit interior made of the same material, the seat, the floor the instruimental panel, are those the same metal or iron? Is the same principal for all aircraft construction or just German [obviously where metal is involved, I know wood was used for other aircrafts?].

    Another question was the metal primed before the scheme or interior colour is applied?

    Ivan

    skyhigh
    Best in Show
    Best in Show

    Posts : 4654
    Join date : 2009-07-30
    Age : 55
    Location : Qormi, Malta

    Re: Me Bf109F details

    Post  skyhigh on Fri Jan 11, 2013 11:37 am

    iCocker wrote:Is the cockpit interior made of the same material, the seat, the floor the instruimental panel, are those the same metal or iron? Is the same principal for all aircraft construction or just German [obviously where metal is involved, I know wood was used for other aircrafts?].

    Another question was the metal primed before the scheme or interior colour is applied?

    Ivan

    A)...As you can see in my opinion they are the same material..

    B)...From the info I read Germany had lack of aluminium, so there were more metal parts involved.. but of course they used some aluminium and for shure wood ....exp late Bf109 had wooden tails ...


    C)...The early prod aircraft were primed with RLM 00 and then RLM 02 or RLM 66 depend the period ...but after 1943 most of the aircaft interiors were left unpainted......

    RLM Var Term Application
    00 Water pale protection coat
    01 Silver undercarriage, coats Fs No...17178 17178 9006
    02 RLM-grey interior, camo, prototypes Fs No...34159 36165 7003

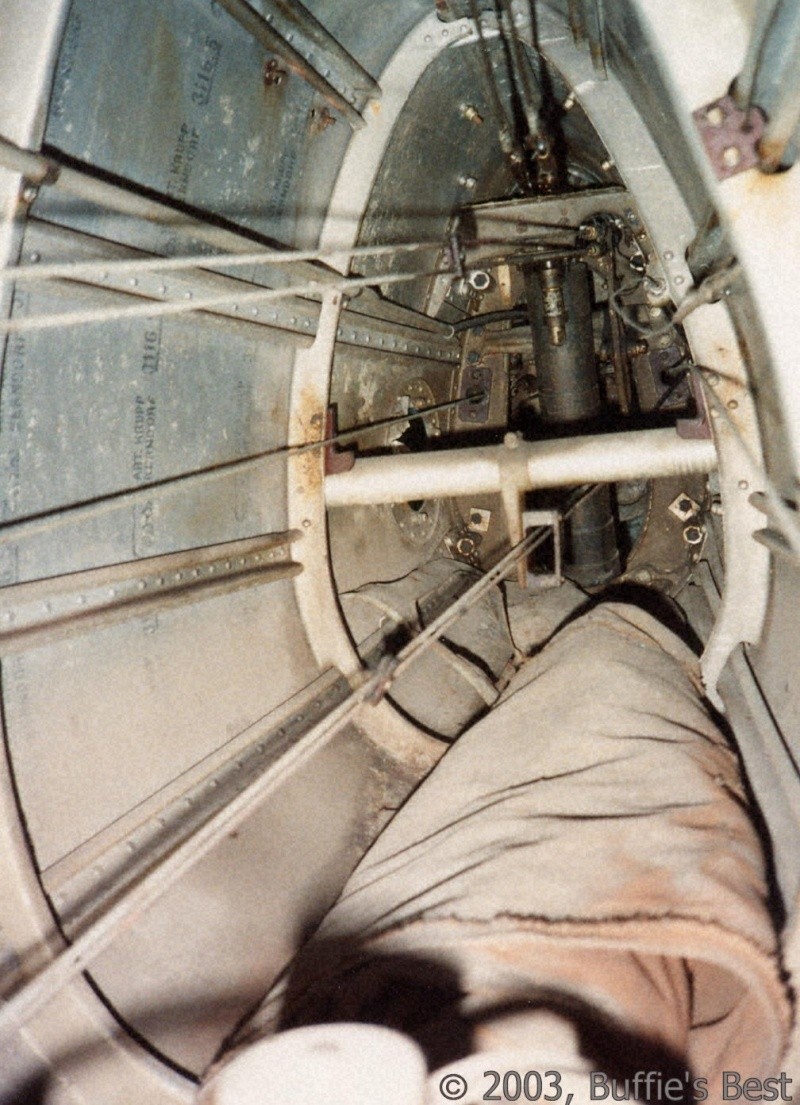

    And this is the RLM 00.., as you can see after all these years , the protection coat was very good.... cheers


    skyhigh
    Best in Show
    Best in Show

    Posts : 4654
    Join date : 2009-07-30
    Age : 55
    Location : Qormi, Malta

    Re: Me Bf109F details

    Post  skyhigh on Fri Jan 11, 2013 9:23 pm

    Joseph wrote:Yes because aluminium is a metal Twisted Evil Twisted Evil Twisted Evil Twisted Evil

    Definition of metal - A chemical element, such as iron, copper, aluminium that reflects light and can be shaped, forms positive ions, and is a good conductor of heat and electricity or, an alloy, such as brass or steel, containing one or more of these elements Twisted Evil Twisted Evil Twisted Evil Twisted Evil



    Ok may be your right or may be your wrong .....because from my knowledge.. Exclamation Rusted Iron will get redish...

    And corrosive aluminium will get powder white ... scratch





    Metal panels.. scratch



    Aluminium tank.... scratch






    Joseph
    Silver
    Silver

    Posts : 621
    Join date : 2009-07-23
    Age : 48
    Location : Zurrieq - Malta

    Re: Me Bf109F details

    Post  Joseph on Sat Jan 12, 2013 9:14 am

    Marco Embarassed please continue Embarassed on your well executed and professional photo research as all this metal thing is going to start oxidising your mental channels which will result in a corroded (rusted) mind Smile Smile Smile Smile Smile Smile .

    From photos provided it is evident that for the cockpit, the frame (although it seems that there are some ribs made of another type of metal), skinning, seat and instrument panel are aluminium. Also there are some fixtures and fittings made out of iron or other metal that has corroded and turned reddish brown.

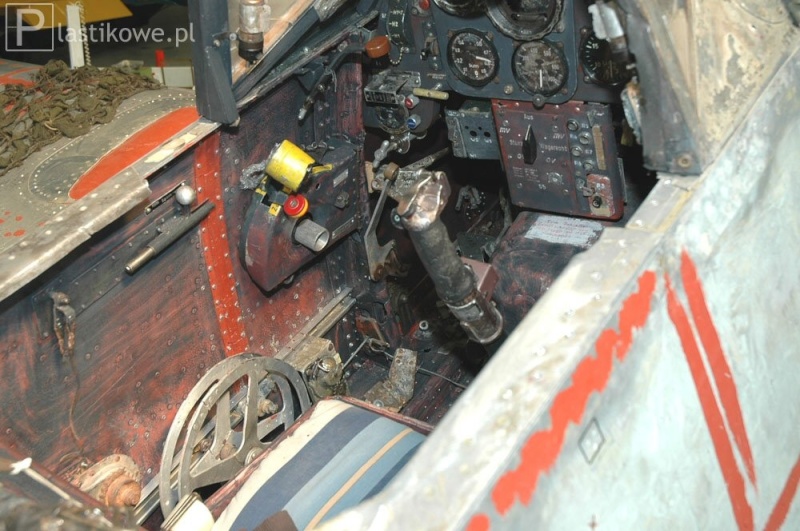

    My question is what is that red colour showing off beneath the RLM66? Is it a primer applied during the war or some chemical liquid applied during restoration? So if I want to make a heavily weathered BF109F (I think not our case) I need to apply that reddish primer beneath the RLM66?










    iCocker
    Best in Show
    Best in Show

    Posts : 3172
    Join date : 2009-07-21
    Age : 42
    Location : Marsascala, Malta

    Re: Me Bf109F details

    Post  iCocker on Sat Jan 12, 2013 9:23 am

    Interesting question Joe, German used Red primer for tanks during WW2, but during construction it was a custom that welded areas prior primer were dubbed [with brush] with a cream paint. Could be something similar?

    My question for what metals were used is if things are scratched what paint, metal is shown below? Standard is we do Aluminium, but looks other metals are used apart that aluminium is not straight glossy metal, look at those dull areas which are quite interesting ... the rusty patina I thing it is too much for a plane in action though ... but cockpit floors might be interesting to develop as surely this will be highly weathered ...

    skyhigh
    Best in Show
    Best in Show

    Posts : 4654
    Join date : 2009-07-30
    Age : 55
    Location : Qormi, Malta

    Re: Me Bf109F details

    Post  skyhigh on Sat Jan 12, 2013 4:05 pm

    Joseph wrote:Marco Embarassed please continue Embarassed on your well executed and professional photo research as all this metal thing is going to start oxidising your mental channels which will result in a corroded (rusted) mind Smile Smile Smile Smile Smile Smile .

    From photos provided it is evident that for the cockpit, the frame (although it seems that there are some ribs made of another type of metal), skinning, seat and instrument panel are aluminium. Also there are some fixtures and fittings made out of iron or other metal that has corroded and turned reddish brown.

    My question is what is that red colour showing off beneath the RLM66? Is it a primer applied during the war or some chemical liquid applied during restoration? So if I want to make a heavily weathered BF109F (I think not our case) I need to apply that reddish primer beneath the RLM66?















    Ok then..

    No Joe that red have nothing to do with german war time colours ....some places looks like chemical liquid applied during restoration or overspray of the red primer used during restoration...



    Ray
    Best in Show
    Best in Show

    Posts : 6102
    Join date : 2009-07-21
    Age : 53
    Location : Zurrieq MALTA

    Re: Me Bf109F details

    Post  Ray on Sat Jan 12, 2013 7:29 pm

    Joseph wrote:Marco Embarassed please continue Embarassed on your well executed and professional photo research as all this metal thing is going to start oxidising your mental channels which will result in a corroded (rusted) mind Smile Smile Smile Smile Smile Smile .


    Quote of SSM & the FORUM cheers cheers cheers cheers cheers cheers cheers

    Wayne, JF & Chris where are you Question Twisted Evil Question Twisted Evil Question Twisted Evil Question

    J.Fenech
    Best in Show
    Best in Show

    Posts : 2103
    Join date : 2009-08-01
    Age : 42
    Location : MALTA - South

    Re: Me Bf109F details

    Post  J.Fenech on Sat Jan 12, 2013 10:15 pm

    Hope you all had your tetanus vaccinations with all this rusting metal 'flying' around!! Twisted Evil Twisted Evil Twisted Evil lol! lol! lol! lol! lol!
