    After almost 20 months away from the hobby, I am back sitting at my new desk and building again!

    The kit I chose to start with was a Fujimi Mitsubishi Evolution VII which I chose because it doesn't have lots of parts and I thought it'd be easy... but I was very wrong in my thinking because these kits require so much work to make them decent! Anyways, here is my progress so far.

    The kit I chose.. the Tein version which I'll however build into a road going version.
    Fujimi Mitsubishi Evo VII 1BoxArt_zps5fde0ff9

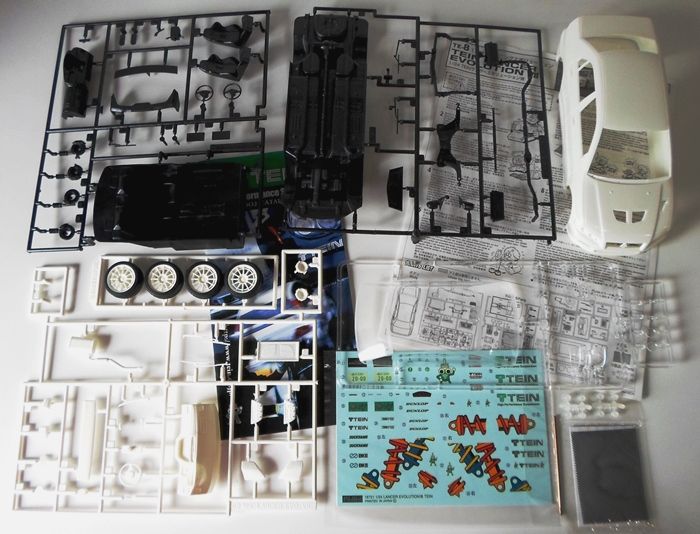

    And all the box contents.
    Fujimi Mitsubishi Evo VII 2AllPartsIncluded_zps4917f648

    I was happy to find an official 2002 Tein catalogue, it was a nice surprise inside  Very Happy
    Fujimi Mitsubishi Evo VII 5TeinCatalogueFront_zpsf351fe01

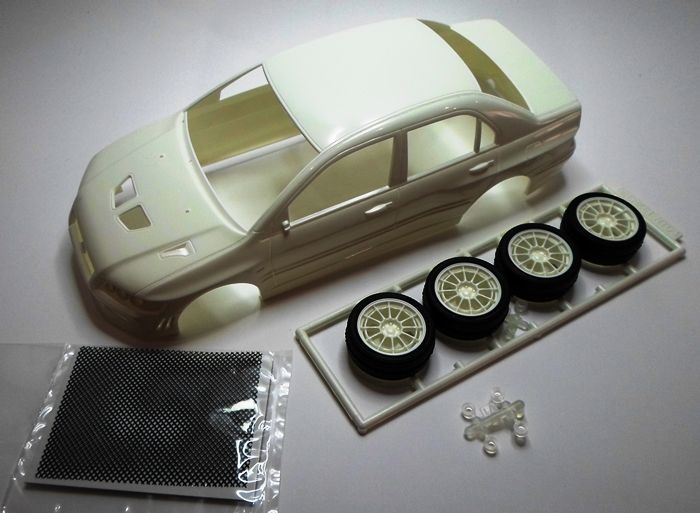

    Here is the body which has a big amount of mold marks and requires many hours of sanding to get smooth.
    The wheels were also a nice surprise.. a set of 18" Enkei NT-03s which I will keep  Smile
    Fujimi Mitsubishi Evo VII 3BodyandWheels_zpsa251921d

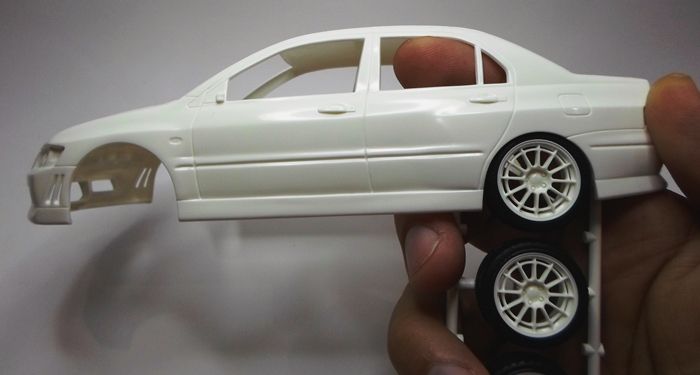

    And speaking of size.. 18" NT03s look great lowered beneath an Evo.. so I'll definitely keep these  Surprised
    Fujimi Mitsubishi Evo VII 4Wheelscompared_zps7660724c

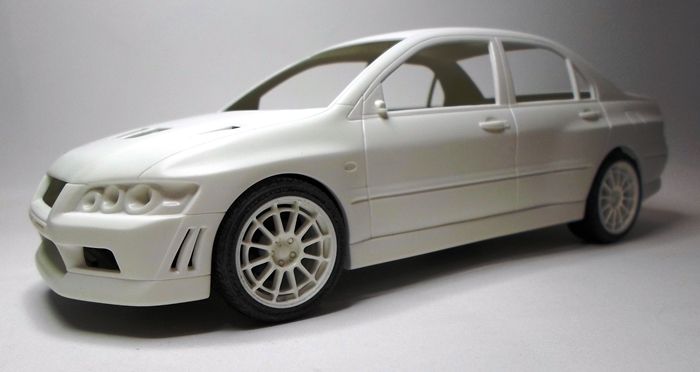

    First thing to do was to sand off all the body mold lines and temporarily assemble the chassis to see the standard Fujimi ride height... which I find to be disgusting and required a lot of work to lower correctly  Evil or Very Mad
    Fujimi Mitsubishi Evo VII 6StandardHeight-2_zps8b0af43c

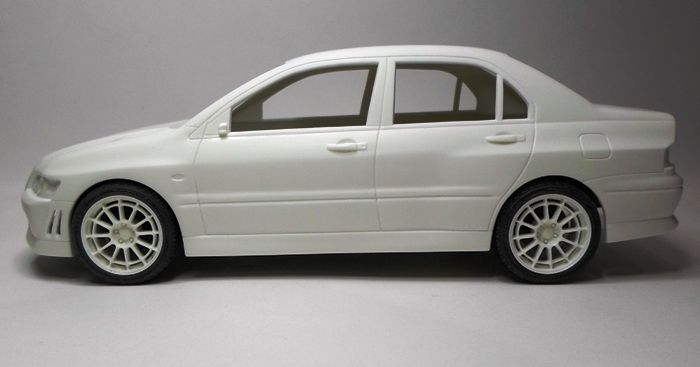

    From these pictures, it does look like a Pajero ride height, but it might not look as bad. But in real life, believe me, it does look bad!
    Fujimi Mitsubishi Evo VII 7StandardHeight-1_zps7dd079fd

    Here is my progress in getting the Evo to sit low and keeping all the wheels rotating.. I won't be playing with it but I like to turn the wheels the way I want once completed!

    First thing to do was to sand down the back of the body arches to make the plastic as narrow as possible, since the body's plastic is so thick and will leave the wheels way back into the arches once completed. Then I sanded down the inner arches on the chassis to allow the wheels to move upwards as requested!

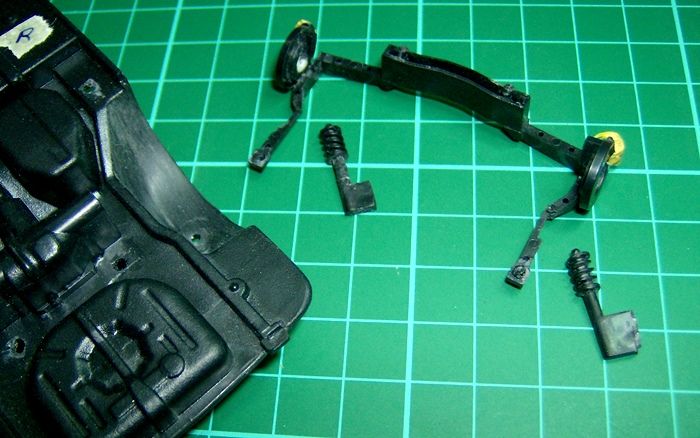

    Then it was off to the rear set-up. I separated the disc brakes from the shock absorbers and attached the discs directly to the arms at a higher position.
    Fujimi Mitsubishi Evo VII 8CutRearBrakes_zpsc5a82d3f

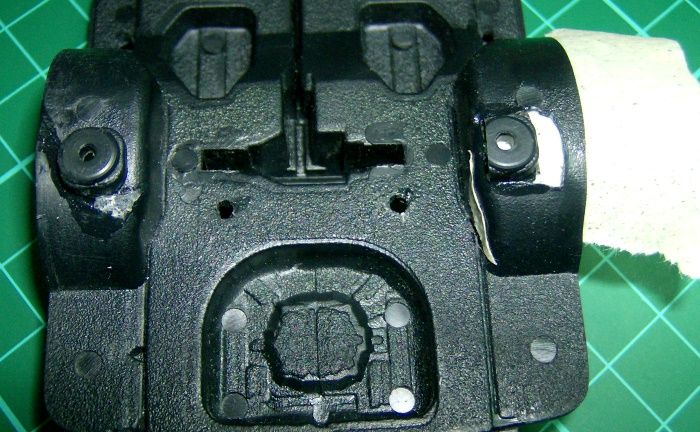

    This made the rear wheels sit at the required stance, however they got in the way of the shock absorbers. So I cut out the top part where the absorbers slide into the chassis and moved them the maximum possible to the inner side. This will make the shock absorber stand further inside the arch and free from the wheel!
    Fujimi Mitsubishi Evo VII 9MovedSuspensionTower_zpsd1edaf09

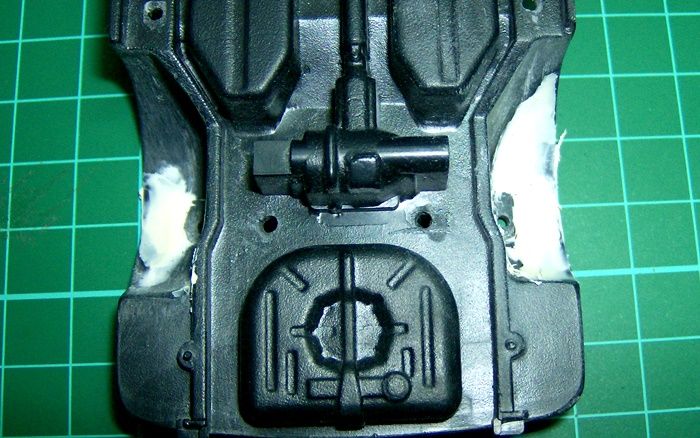

    Once both were glued in place, the arches were filled with putty and sanded!
    Fujimi Mitsubishi Evo VII 10ArchesPuttyFilled_zps4be39cb7

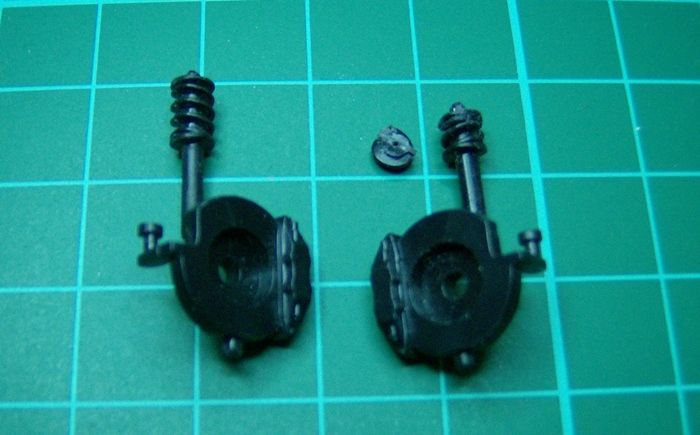

    Then it was off for the front set-up. First thing was to cut 2mm off the shock absorbers.
    Fujimi Mitsubishi Evo VII 11FrontSuspensions_zps969fb5e0

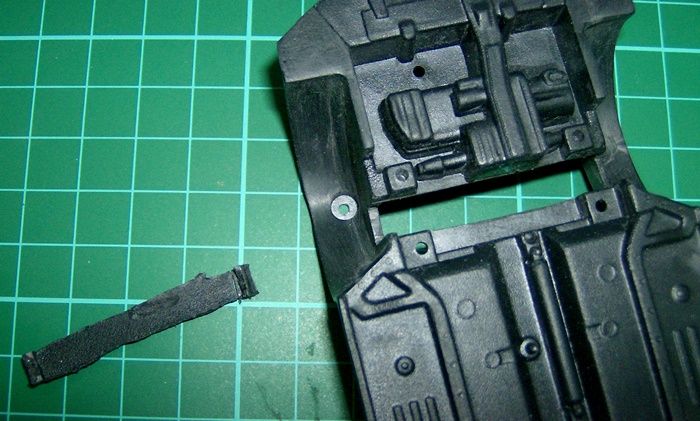

    This made the wheels sit at my required stance, however now the steering rod connecting both wheels was touching the chassis so I opened the slot seen below to make way for it!
    Fujimi Mitsubishi Evo VII 13CutFrontSide_zps98ef72b7

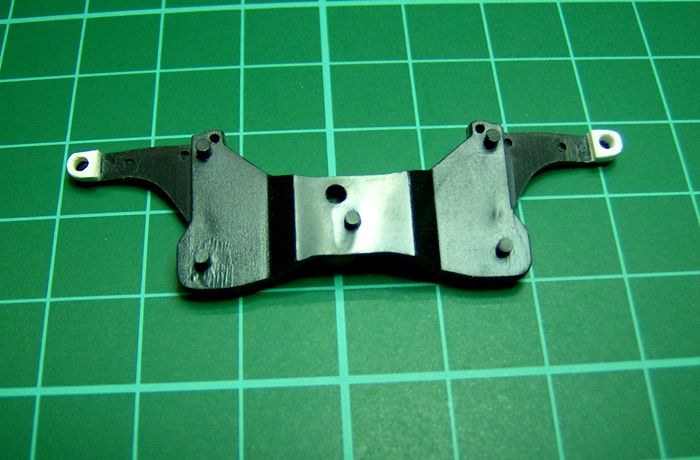

    Then I added 2 spacers beneath the front arms to compensate for the smaller shock absorbers.
    Fujimi Mitsubishi Evo VII 12SpacersAdded_zps8b4358d6

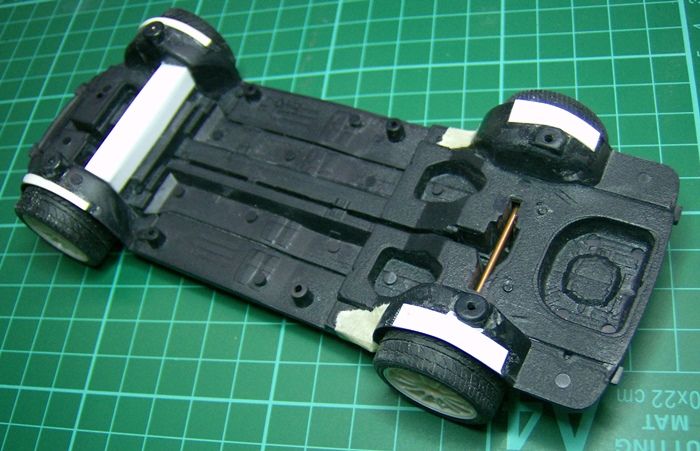

    Finally, here is a view of the chassis! All arches were re-inforced with styrene and I built that box in the front to cover the opening I made earlier for the steering rod!
    Fujimi Mitsubishi Evo VII 14ChassisRe-inforced_zpse73ef415

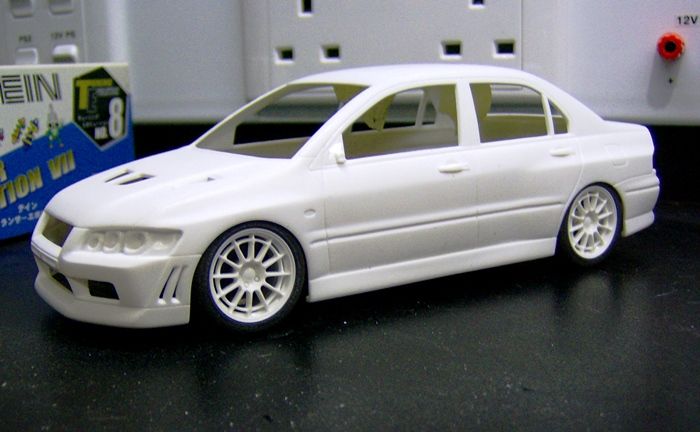

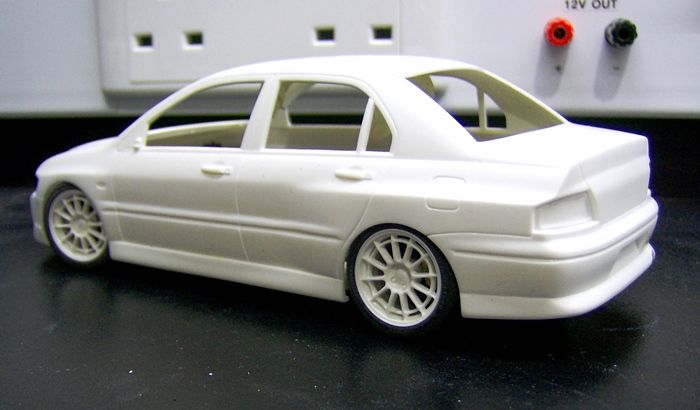

    And did all these modifications, actually work?? Yes they did  Laughing .. here is how the Evo is now sitting at my desk  Very Happy
    Fujimi Mitsubishi Evo VII 15LoweredFront_zps908f302b

    Fujimi Mitsubishi Evo VII 16LoweredBack_zpsabfa7a7e

    Next challenge was to detail the under body since Fujimi's diff and shaft were making me sick   monkey

    This is how the original under body looked when assembled
    Fujimi Mitsubishi Evo VII 17OriginalUnderbody_zpsf93e6075

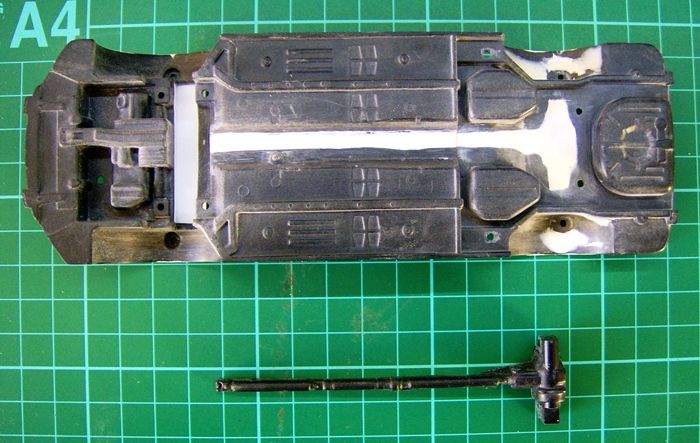

    So I brought out the saw and began cutting off the differential (or T-shaped box!!) together with the one-piece shaft. The open hole was then filled with styrene and finally finished with several layers of putty.
    Fujimi Mitsubishi Evo VII 18Chassiscutandsmoothed_zps7d0afffc

    The under body was then lightly primered in white to reveal any defects in the putty. Beneath the chassis are the new parts from the spares box which I'm going to use instead of the original diff and shaft assembly!
    Fujimi Mitsubishi Evo VII 19Primeredchassis_zps585d3cc5

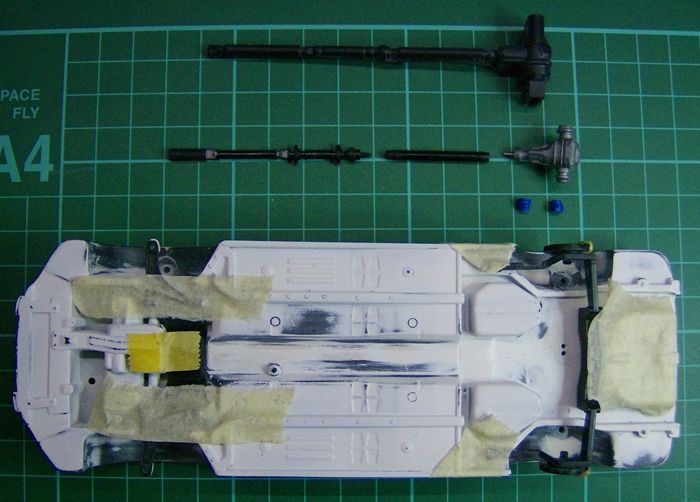

    The new parts were butchered up and re-arranged to get them to the exact needed lenght for the Evo. The blue pieces are also from the spares box and will be used as bellow covers behind the rear disc brakes. The 2 holes beneath the diff were made to hold the diff exactly in place when final assembly comes!
    Fujimi Mitsubishi Evo VII 20Partsinplace_zps6a438045

    Finally, here is the new Evo under body all assembled and in place. It may look like a minor modification, but I'm sure the long hours spent on this will make the chassis look muuuuuuch better in the end  Very Happy  Very Happy
    Fujimi Mitsubishi Evo VII 21AssembledDiff_zpsdff47026

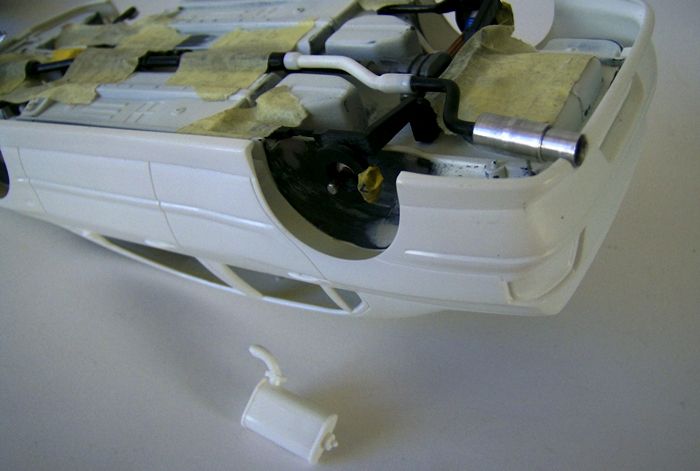

    Last piece of work on the chassis.. I've replaced the exhaust muffler with a new one made from scratch by a friend from aluminium rods. It is exactly the same size and diameter as the Fujimi A'pex N1 Muffler! I'll polish it later on during the build to bring it to a nice shiny finish!

    Here it is.. and next to the car you can see the original Evo muffler.
    Fujimi Mitsubishi Evo VII 22NewExhaust_zpsb3584777

    Thanks for looking,
    Karl  cheers
    Ray
    Ray
    Best in Show
    Best in Show

    Posts : 6102
    Join date : 2009-07-21
    Age : 56
    Location : Zurrieq MALTA

    Fujimi Mitsubishi Evo VII Empty Re: Fujimi Mitsubishi Evo VII

    Post  Ray on Fri Mar 21, 2014 5:42 pm

    Waiting for more  Twisted Evil Twisted Evil Twisted Evil
    Robert
    Robert
    Bronze
    Bronze

    Posts : 259
    Join date : 2012-06-14
    Age : 36
    Location : Haz-zebbug

    Fujimi Mitsubishi Evo VII Empty Re: Fujimi Mitsubishi Evo VII

    Post  Robert on Fri Mar 21, 2014 8:32 pm

    i like...prosit eeee ...keep it up i like what your doing
    bcauchi
    bcauchi
    Best in Show
    Best in Show

    Posts : 4088
    Join date : 2009-07-30
    Age : 58
    Location : St. Julian's

    Fujimi Mitsubishi Evo VII Empty Re: Fujimi Mitsubishi Evo VII

    Post  bcauchi on Sat Mar 22, 2014 7:28 am

    amazing work. you sure captured the look and sit of the car. love the step by step. keep them coming!
    Dottore
    Dottore
    Gold
    Gold

    Posts : 1388
    Join date : 2009-07-21
    Age : 41
    Location : Tarxien, Malta

    Fujimi Mitsubishi Evo VII Empty Not into model cars (unlike real ones ;))

    Post  Dottore on Sat Mar 22, 2014 1:42 pm

    But I sure enjoyed seeing you detail this one...excellent work indeed!!!

    Dottore
    skyhigh
    skyhigh
    Best in Show
    Best in Show

    Posts : 4654
    Join date : 2009-07-30
    Age : 57
    Location : Qormi, Malta

    Fujimi Mitsubishi Evo VII Empty Re: Fujimi Mitsubishi Evo VII

    Post  skyhigh on Sun Mar 23, 2014 8:48 am

    Your building it as real............ cheers
    el manolo
    el manolo
    Bronze
    Bronze

    Posts : 287
    Join date : 2012-03-15
    Age : 33

    Fujimi Mitsubishi Evo VII Empty Re: Fujimi Mitsubishi Evo VII

    Post  el manolo on Sun Mar 23, 2014 2:47 pm

    you are a master!
    KarlJDM
    KarlJDM

    Posts : 32
    Join date : 2013-03-04
    Age : 37
    Location : Fgura

    Fujimi Mitsubishi Evo VII Empty Re: Fujimi Mitsubishi Evo VII

    Post  KarlJDM on Mon May 19, 2014 2:27 pm

    cheers Thank you everyone for your kind replies, very much appreciated.

    I apologize for my lack of updates.. work has been going on at a slow rate on the Evo, however I do have several updates I'd like to show  Very Happy

    With the undercarriage modifications done, it was time to work on the interior. After long hours sanding down all the nasty Fujimi mold lines, I started working on the front seats. The back of these seats was out of shape compared to the originals, so these were filled with putty and then covered with styrene to bring the required shape. The seat belt holes were later drilled out.
    Fujimi Mitsubishi Evo VII 23FilledSeatBacks_zps2d753a1f
    Fujimi Mitsubishi Evo VII 24FinishedFrontSeats_zpsfea8f2f1

    And also added a pair of b-pillars from styrene so that I would have a base for my front seat belts later on with the build!
    Fujimi Mitsubishi Evo VII 25B-PillarsDone_zps0275119d

    That completed the interior modifications too, so then I applied primer to all the undercarriage and interior pieces. I was happy because I hadn't used the 2K primer for almost 2 years now and once I opened the lid of the can, I found it ready to start working with again  Laughing

    Here are all the pieces in grey primer
    Fujimi Mitsubishi Evo VII 26PrimerApplied_zps25445b5e

    And then the undercarriage was airbrushed in its final colour.. the Mitsubishi Y01, Dandelion Yellow which is the original yellow colour of the Evo VII.
    Fujimi Mitsubishi Evo VII 27YellowUndercarriage_zpseb1347c3

    In the picture, it looks like a high-lighter yellow, but in reality it's a nice shade of yellow and I'm happy with the chosen colour  Smile

    Then it was time to start the airbrushing/masking/airbrushing/masking... process and the picture below shows all the undercarriage pieces drying off from their last airbrushed colour.

    Fujimi Mitsubishi Evo VII 28ChassisPartsAirbrushed_zps4797fbfe

    All the masking tape/liquid was then removed, brake calipers decals attached, everything weathered and ready for assembly
    Fujimi Mitsubishi Evo VII 29ChassisReadyforAssembly_zpse9ee853a

    And finally, completed  Cool
    Fujimi Mitsubishi Evo VII 30FinishedUndercarriage_zps79d12157

    Fujimi Mitsubishi Evo VII 31FinishedUndercarriageFront_zpsbfc0c9db

    Fujimi Mitsubishi Evo VII 32FinishedUndercarriageFront2_zps46df874e

    Fujimi Mitsubishi Evo VII 33FinishedUndercarriageBack_zps817b7590

    Fujimi Mitsubishi Evo VII 34FinishedUndercarriageBack2_zpsef46a348

    Fujimi Mitsubishi Evo VII 35FinishedUndercarriageSide_zps38de0f05

    Intercooler was weathered and blue hoses together with aluminium pipes were added to make it more realistic
    Fujimi Mitsubishi Evo VII 36FinishedIntercooler_zps015b42d8

    With that finished, I continued work on the interior and this picture shows all the parts airbrushed and ready for the final details and assembly..
    Fujimi Mitsubishi Evo VII 37AirbrushedInterior_zps9979d23d

    This weekend, I also managed to finish the interior. I just need to re-size the pictures I took and will upload them on my next update.. which hopefully won't be as long as this one  Laughing  Laughing

    Thanks for looking,
    Karl cheers


    Last edited by KarlJDM on Mon May 19, 2014 2:44 pm; edited 1 time in total
    Ray
    Ray
    Best in Show
    Best in Show

    Posts : 6102
    Join date : 2009-07-21
    Age : 56
    Location : Zurrieq MALTA

    Fujimi Mitsubishi Evo VII Empty Re: Fujimi Mitsubishi Evo VII

    Post  Ray on Mon May 19, 2014 2:39 pm

    Looking good Karl  cheers

    Keep them rolling  Twisted Evil
    KarlJDM
    KarlJDM

    Posts : 32
    Join date : 2013-03-04
    Age : 37
    Location : Fgura

    Fujimi Mitsubishi Evo VII Empty Re: Fujimi Mitsubishi Evo VII

    Post  KarlJDM on Fri May 23, 2014 6:26 pm

    Thank you Ray, very much appreciated  Very Happy

    So, finally I managed to find time to re-size the images of the finished interior and here they are.

    The interior floor and rear shelf were covered with dark grey flocking while seat belts were added too.
    Fujimi Mitsubishi Evo VII 38FlockedInterior_zpsf3a0be7f

    Finally, everything was assembled and here it is  Smile
    Fujimi Mitsubishi Evo VII 39FinishedInterior1_zps03b8d6c6

    Fujimi Mitsubishi Evo VII 40FinishedInterior2_zpsbd8699b2

    Fujimi Mitsubishi Evo VII 41FinishedInterior3_zps17872730

    Fujimi Mitsubishi Evo VII 42FinishedInterior4_zps402d560e

    Fujimi Mitsubishi Evo VII 43FinishedInterior5_zps4a1a11fa

    Fujimi Mitsubishi Evo VII 44FinishedInterior6_zpsdd1416ab

    Fujimi Mitsubishi Evo VII 45FinishedInterior7_zps41836875

    With that finished, now it's time to start working on the body and all of its remaining pieces Very Happy

    Thanks for looking,
    Karl  cheers
    Ray
    Ray
    Best in Show
    Best in Show

    Posts : 6102
    Join date : 2009-07-21
    Age : 56
    Location : Zurrieq MALTA

    Fujimi Mitsubishi Evo VII Empty Re: Fujimi Mitsubishi Evo VII

    Post  Ray on Sat May 24, 2014 3:16 pm

    Looking very nice good Karl  Twisted Evil

    Well done  cheers

    Gordon
    Gordon
    Gold
    Gold

    Posts : 707
    Join date : 2009-07-23
    Age : 39
    Location : bormla

    Fujimi Mitsubishi Evo VII Empty Re: Fujimi Mitsubishi Evo VII

    Post  Gordon on Sat May 24, 2014 3:27 pm

    well done karl
    el manolo
    el manolo
    Bronze
    Bronze

    Posts : 287
    Join date : 2012-03-15
    Age : 33

    Fujimi Mitsubishi Evo VII Empty Re: Fujimi Mitsubishi Evo VII

    Post  el manolo on Sat May 24, 2014 3:48 pm

    keep up the good work Karl  cheers
    skyhigh
    skyhigh
    Best in Show
    Best in Show

    Posts : 4654
    Join date : 2009-07-30
    Age : 57
    Location : Qormi, Malta

    Fujimi Mitsubishi Evo VII Empty Re: Fujimi Mitsubishi Evo VII

    Post  skyhigh on Sun May 25, 2014 8:58 am

    Professional work ......welldone..... cheers
