    1/32 FW190 A5

    Post  Joseph on Fri Feb 12, 2010 11:29 pm

    I have started work on this 1/32 FW190 A5 a very long time ago, but hopefully I will finish it for this year's expo. Next stage for this beautifull aircraft is paintwork and I have decided to apply some weathering.

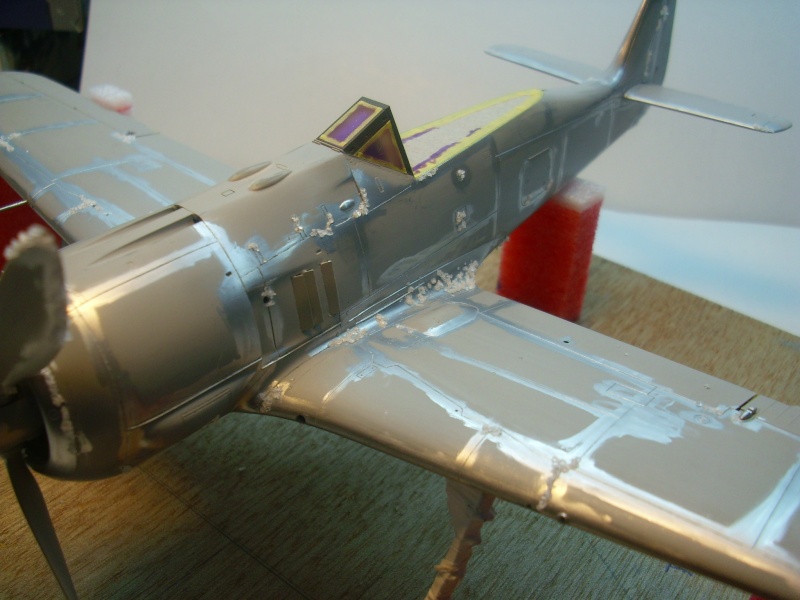

    After the undercoat I applied aluminuim rub+buff on areas that are more likely to be scratched. This was left to dry and then I randomly positioned salt granules. Next step is to spray the O2 covering these areas so I would place some more salt granules. The idea, hopefully, is that when the whole aircraft is sprayed I will remove the salt granules and the chipping will apear.

    I will keep posting the step by step of the whole process.

    This is the first time that I am using this technique so, my learning curve is still at its infancy Smile

    Brian, if you have some advice or you notice anything wrong in my aplication please point out.







    J

    Luke
    Bronze
    Bronze

    Posts : 205
    Join date : 2010-01-15
    Location : Haz-Zebbug

    Very nice job

    Post  Luke on Sat Feb 13, 2010 7:52 am

    Very nice job Joseph Very Happy

    skyhigh
    Best in Show
    Best in Show

    Posts : 4654
    Join date : 2009-07-30
    Age : 55
    Location : Qormi, Malta

    Re: 1/32 FW190 A5

    Post  skyhigh on Sat Feb 13, 2010 8:11 am

    Joseph here again is that A-5 Fw190 with three green colours...

    Alex Kontiveis
    Silver
    Silver

    Posts : 356
    Join date : 2009-08-04
    Age : 46
    Location : Greece

    Re: 1/32 FW190 A5

    Post  Alex Kontiveis on Sat Feb 13, 2010 8:12 am

    Hi Joseph,
    Very nice progress. As far as I can see you have used salt for chipping. That's nice and very realistic method for the final result. But...I have an objection for VDM's chipping...I think the VDM you have installed were wooden. Can you tell me which A-5/U????? are you gonna make? I can find some documented info about it, if you like so.

    PS>..Dont forget to make holes for installing wheel's position indicator on wings.

    Cheers
    Alex

    skyhigh
    Best in Show
    Best in Show

    Posts : 4654
    Join date : 2009-07-30
    Age : 55
    Location : Qormi, Malta

    Re: 1/32 FW190 A5

    Post  skyhigh on Sat Feb 13, 2010 8:54 am

    I don't tink so Alex because the wooden prop was for later type F's ang G's, here is some examples but later I will find more in detail ref...may be what you are ref is a prototype or later version , because there were a lot of prototype models of the A-4 and the A-5...

    skyhigh
    Best in Show
    Best in Show

    Posts : 4654
    Join date : 2009-07-30
    Age : 55
    Location : Qormi, Malta

    Re: 1/32 FW190 A5

    Post  skyhigh on Sat Feb 13, 2010 8:56 am

    Another think Alex may be Joseph put the wrong prop , yes because it's to wide.. cheers .

    Alex Kontiveis
    Silver
    Silver

    Posts : 356
    Join date : 2009-08-04
    Age : 46
    Location : Greece

    Re: 1/32 FW190 A5

    Post  Alex Kontiveis on Sat Feb 13, 2010 9:25 am

    skyhigh wrote:Another think Alex may be Joseph put the wrong prop , yes because it's to wide.. cheers .

    That's the reason I mention that. But there were some A-5/U-17 found with wooden props.

    in nannu pec
    Best in Show
    Best in Show

    Posts : 2019
    Join date : 2009-07-23
    Age : 68
    Location : Qawra Malta

    Nice

    Post  in nannu pec on Sat Feb 13, 2010 11:31 am

    Very Nice Job Joseph.....I like the idea of the salt granules....it might be handy for m,e as well on much weathered hulls especially on Russian ships... Idea Idea Idea Idea Idea
    WELL DONE...COMING ON NICELY
    In nannu pec What a Face

    Guest
    Guest

    Re: 1/32 FW190 A5

    Post  Guest on Sat Feb 13, 2010 12:26 pm

    So looking forward to seeing this one come together, pity that there is not a nice pilot figure for Ray to paint for it. Hardy

    iCocker
    Best in Show
    Best in Show

    Posts : 3172
    Join date : 2009-07-21
    Age : 42
    Location : Marsascala, Malta

    Re: 1/32 FW190 A5

    Post  iCocker on Sat Feb 13, 2010 12:52 pm

    The sand granules is a good technique for controlled chips Joe. Maybe if primer was involved in planes, you overspray what you have already done with what colour the Germans primed in, then add some more salt granules again on the same areas and continue your spray with the Luftwaffe colour scheme. When you take off the salt granules you 'll be having some different chips, those that went till the aluminium and those that just revealed the primer ... it will add some more interest in that specific area ...

    IMO you need also to add some minute crystals Joe, just crash some granules and use the smaller ones ... just to easily add those minute scratches ...

    Ivan

    skyhigh
    Best in Show
    Best in Show

    Posts : 4654
    Join date : 2009-07-30
    Age : 55
    Location : Qormi, Malta

    Re: 1/32 FW190 A5

    Post  skyhigh on Sat Feb 13, 2010 5:22 pm

    And this is the other A-5 of JG1...

    Ray
    Best in Show
    Best in Show

    Posts : 6102
    Join date : 2009-07-21
    Age : 53
    Location : Zurrieq MALTA

    Re: 1/32 FW190 A5

    Post  Ray on Sat Feb 13, 2010 8:39 pm

    Very nice idea........I agree with Ivan's suggestion re crushed granules as they appear too big, or rather they are surely magnified like everything else after all Shocked

    Ray affraid

    J.Fenech
    Best in Show
    Best in Show

    Posts : 2103
    Join date : 2009-08-01
    Age : 42
    Location : MALTA - South

    Re: 1/32 FW190 A5

    Post  J.Fenech on Sun Feb 14, 2010 6:51 am

    Interesting idea, waiting to see results Joe. I agree with ray and ivan applying crushed smaller granules, or they are there already and made to look bigger in the pic.

    jojjemannen
    Admin

    Posts : 430
    Join date : 2009-07-29
    Age : 38
    Location : Getinge

    Re: 1/32 FW190 A5

    Post  jojjemannen on Sun Feb 14, 2010 9:47 am

    Cool progress!

    How do you attach the salt grains to the hull?

    //TIny

    bcauchi
    Best in Show
    Best in Show

    Posts : 4061
    Join date : 2009-07-30
    Age : 55
    Location : St. Julian's

    Re: 1/32 FW190 A5

    Post  bcauchi on Sun Feb 14, 2010 6:54 pm

    Sorry Joseph, i forgot to explain that when i used that technique, i used the fine salt grains not the large ones. that is why it took so long to place them I picked them up one by one!!

    Joseph
    Silver
    Silver

    Posts : 621
    Join date : 2009-07-23
    Age : 48
    Location : Zurrieq - Malta

    Re: 1/32 FW190 A5

    Post  Joseph on Mon Feb 15, 2010 9:07 am

    Yes Brian, you told me to use the fine table salt and explained well the process, infact that is what I have used, I think the granules are magnified in the photos but what happened is that with water the granules liquified a bit and became a big blop. I have removed the large areas and re-done these. I have also experimented with sand granules. I wait to see the end result.

    Tiny you just dip a fine paint brush in water and then pick the salt and place it on the surface, these will hold firm unless you hit them off with your hands Smile

    J

    bcauchi
    Best in Show
    Best in Show

    Posts : 4061
    Join date : 2009-07-30
    Age : 55
    Location : St. Julian's

    Re: 1/32 FW190 A5

    Post  bcauchi on Mon Feb 15, 2010 9:24 am

    The trouble with sand granules may be that they will not stick to the model. With salt, the water melts them enough to make them stick to the model. Actually they stick quite well and have to be brushed off. When i dip the brush in water, i dab it on a tissue first to just have the bristles damp.

    skyhigh
    Best in Show
    Best in Show

    Posts : 4654
    Join date : 2009-07-30
    Age : 55
    Location : Qormi, Malta

    Re: 1/32 FW190 A5

    Post  skyhigh on Fri Feb 19, 2010 9:54 pm

    Joe this can help for the engine.... cheers

    skyhigh
    Best in Show
    Best in Show

    Posts : 4654
    Join date : 2009-07-30
    Age : 55
    Location : Qormi, Malta

    Re: 1/32 FW190 A5

    Post  skyhigh on Fri Feb 19, 2010 9:56 pm


    skyhigh
    Best in Show
    Best in Show

    Posts : 4654
    Join date : 2009-07-30
    Age : 55
    Location : Qormi, Malta

    Re: 1/32 FW190 A5

    Post  skyhigh on Fri Feb 19, 2010 10:01 pm

    Joe
    this is the correct shape of the metal prop.. cheers

    Joseph
    Silver
    Silver

    Posts : 621
    Join date : 2009-07-23
    Age : 48
    Location : Zurrieq - Malta

    Re: 1/32 FW190 A5

    Post  Joseph on Fri Feb 19, 2010 10:17 pm

    Brian, yes salt sticks better with the surface.

    It seems that the prop supplied with the kit is 95% correct, so I am going to stick with it Smile

    Very good engine photos.

    J

    Ray
    Best in Show
    Best in Show

    Posts : 6102
    Join date : 2009-07-21
    Age : 53
    Location : Zurrieq MALTA

    Re: 1/32 FW190 A5

    Post  Ray on Fri Feb 19, 2010 10:32 pm

    Marco, what colour was the engine oil please Sad just in case we have to contradict Joseph on the colour of the oil streaks when it will be ready ?

    Jos, nice and wise move re 95% correctness of the prop Laughing

    Ray affraid

    skyhigh
    Best in Show
    Best in Show

    Posts : 4654
    Join date : 2009-07-30
    Age : 55
    Location : Qormi, Malta

    Re: 1/32 FW190 A5

    Post  skyhigh on Fri Feb 19, 2010 10:38 pm

    Aw lol! lol! Joe is useing small salt crystals , but you are a bigger one in Maltese Melha !!!!! lol! lol!

    Ray
    Best in Show
    Best in Show

    Posts : 6102
    Join date : 2009-07-21
    Age : 53
    Location : Zurrieq MALTA

    Re: 1/32 FW190 A5

    Post  Ray on Fri Feb 19, 2010 10:40 pm

    skyhigh wrote:Aw lol! lol! Joe is useing small salt crystals , but you are a bigger one in Maltese Melha !!!!! lol! lol!

    lol! lol! lol! lol! lol! lol! lol!

    LOVE IT lol! lol! lol! lol! lol! lol! lol!

    Ray affraid

    skyhigh
    Best in Show
    Best in Show

    Posts : 4654
    Join date : 2009-07-30
    Age : 55
    Location : Qormi, Malta

    Re: 1/32 FW190 A5

    Post  skyhigh on Fri Feb 19, 2010 10:51 pm

    these are the kit props...
