    XB-70s WIP - Page 2 Empty Re: XB-70s WIP

    Post  bcauchi Sun May 23, 2010 2:57 pm

    Great work, keep them coming.
    avatar
    Guest
    Guest


    XB-70s WIP - Page 2 Empty Re: XB-70s WIP

    Post  Guest Mon May 31, 2010 11:41 pm

    I found some more information on the XB-70, namely better 3 view drawings showing panel lines. (ironically at a Russian website!)So now I am adding even more panel lines to this beast. I think I found a better way to do scribing as well.

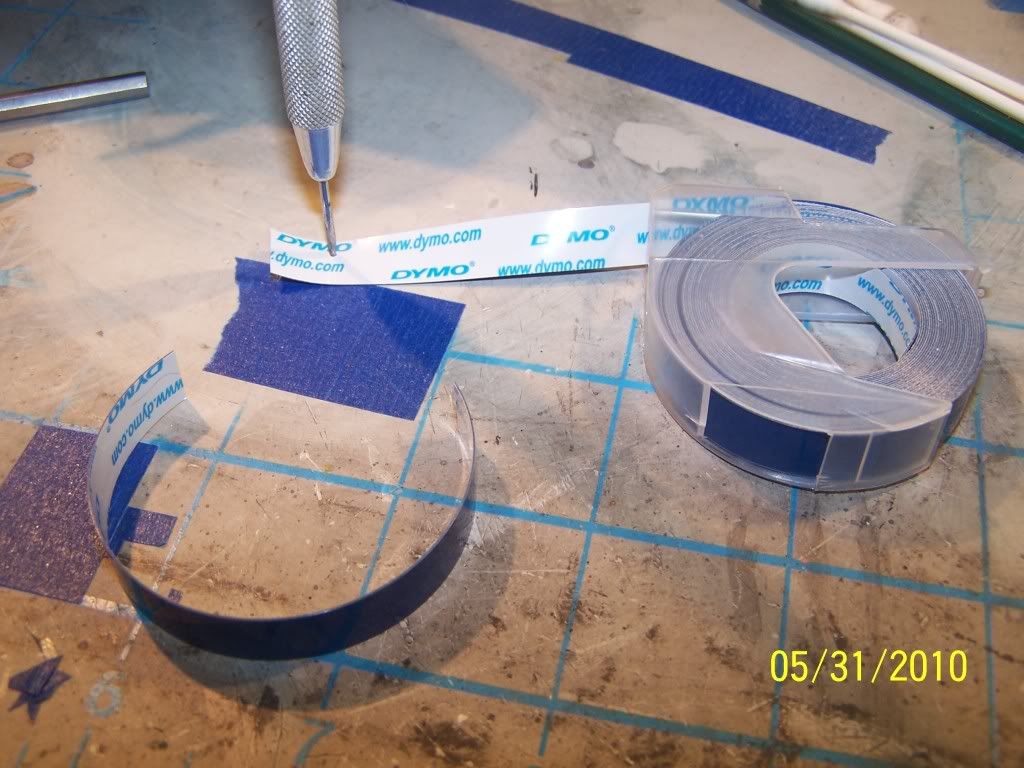

    I am sure many of you remember the Dyamo labeling machine, the one where you would squeeze the handle to press a letter into thick plastic tape. I found out that make a great scribing edge.

    XB-70s WIP - Page 2 100_5985

    To make it last a little longer I cut the piece in half down the length.

    XB-70s WIP - Page 2 100_5986

    First I press it to my fingers to take off some of the tack, don't need to put the model apart trying to get the stuff off. Then I place it on the model where I want to scribe my panel line.

    XB-70s WIP - Page 2 100_5987

    Then use is as an edge to keep the scribing tool against...

    XB-70s WIP - Page 2 100_5988

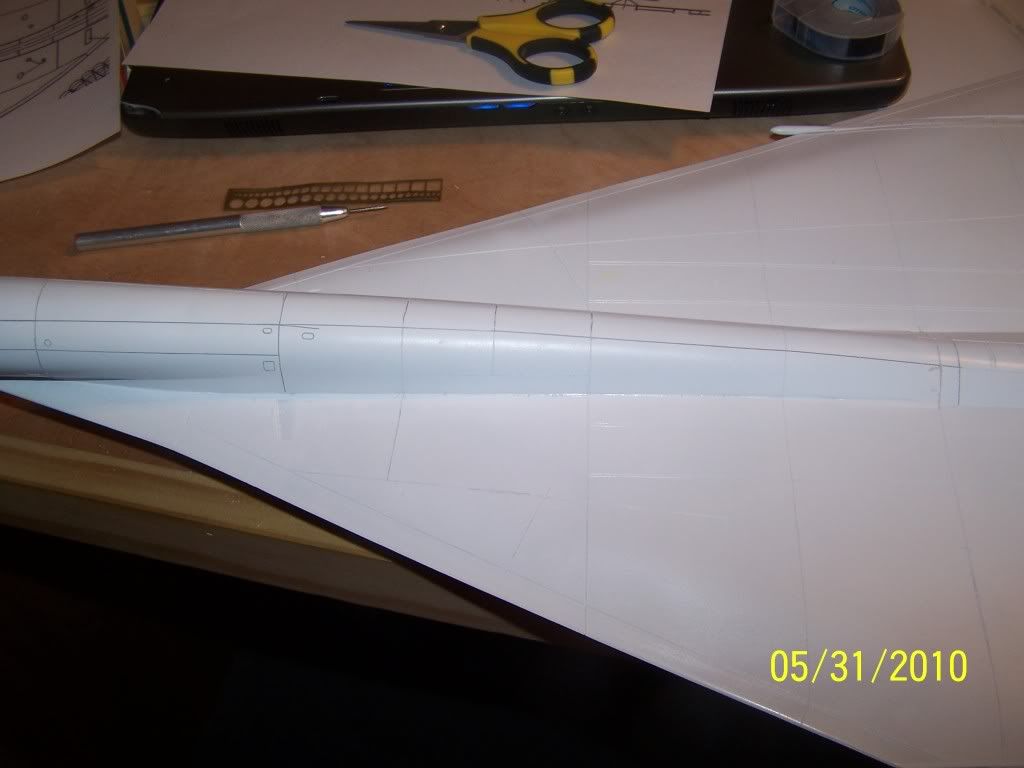

    Here is an in progress look as I continue to scribe lines on the top, next I will have to flip the model over.

    XB-70s WIP - Page 2 100_5990

    Each piece of tape can be used several time before the tack goes away of it picks up to much plastic dust to stick well.
    slingshot392
    slingshot392
    Silver
    Silver


    Posts : 467
    Join date : 2010-02-19
    Age : 61
    Location : Minnesota, USA

    XB-70s WIP - Page 2 Empty Re: XB-70s WIP

    Post  slingshot392 Tue Jun 01, 2010 12:22 am

    Great work done this so far, I can't believe how huge this model is! I have heard of others using that tape successfully for scribing, I just never remember to pick any up when I go to the store.
    avatar
    Guest
    Guest


    XB-70s WIP - Page 2 Empty Re: XB-70s WIP

    Post  Guest Mon Jun 07, 2010 3:52 am

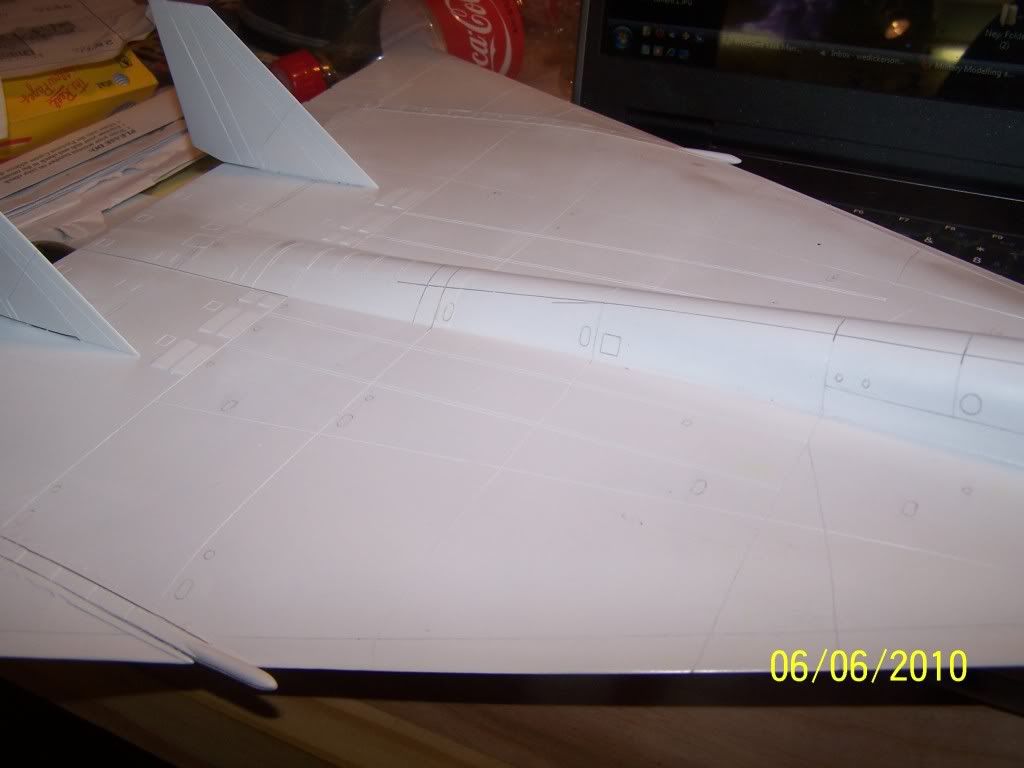

    Well I have finished scribing the panel lines.

    XB-70s WIP - Page 2 100_5993

    XB-70s WIP - Page 2 100_5994

    XB-70s WIP - Page 2 100_5995

    XB-70s WIP - Page 2 100_5996

    Now I have to do a little touch up on some panel lines then I can finish the paint job.


    Note to self, don't attach the vertical tails until I have scribed the aircraft on the second plane. I have almost broken the things off several times.
    avatar
    Guest
    Guest


    XB-70s WIP - Page 2 Empty Re: XB-70s WIP

    Post  Guest Fri Jun 11, 2010 4:06 am

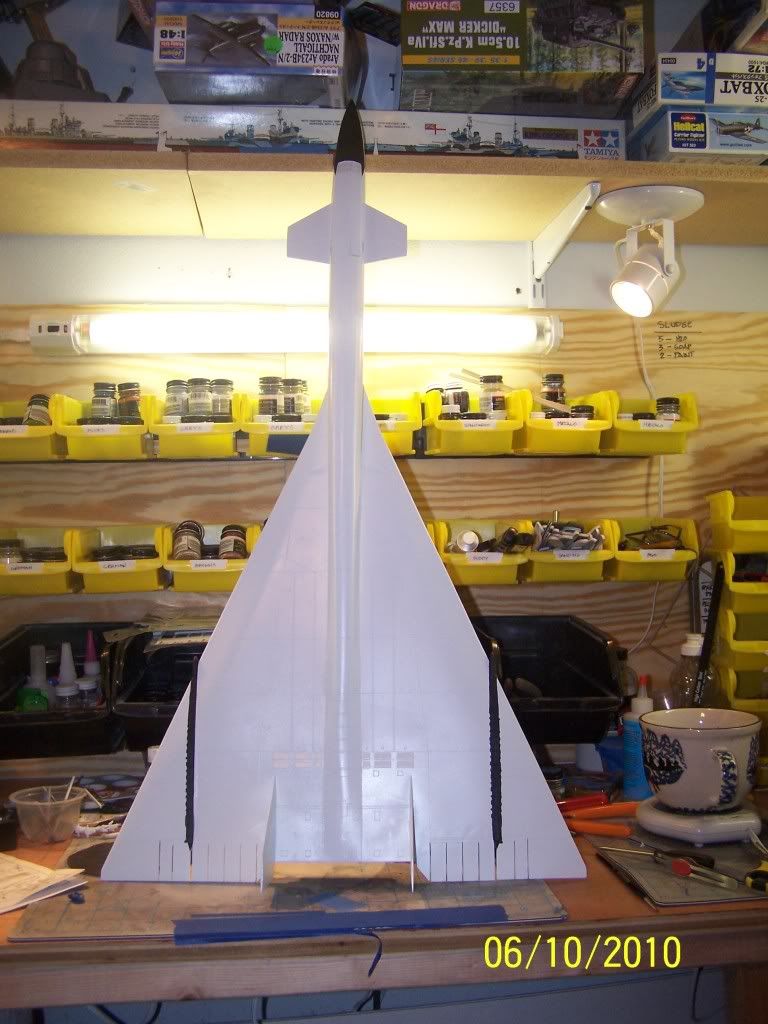

    Did the black areas on the nose and wing hinges. Don't like the way the hinges are turning out, will have to repaint the top hinge edges. Still have some other painting to do. but getting closer.

    XB-70s WIP - Page 2 100_6002

    XB-70s WIP - Page 2 100_6003

    XB-70s WIP - Page 2 100_6005
    avatar
    Guest
    Guest


    XB-70s WIP - Page 2 Empty Re: XB-70s WIP

    Post  Guest Mon Jun 28, 2010 3:05 am

    The wheels on this kit suck... you can see the big ridge that was all the way around each wheel... lots of sanding still... the wheel in the back of the photo is sanded.... only 9 more to go...

    XB-70s WIP - Page 2 100_6090

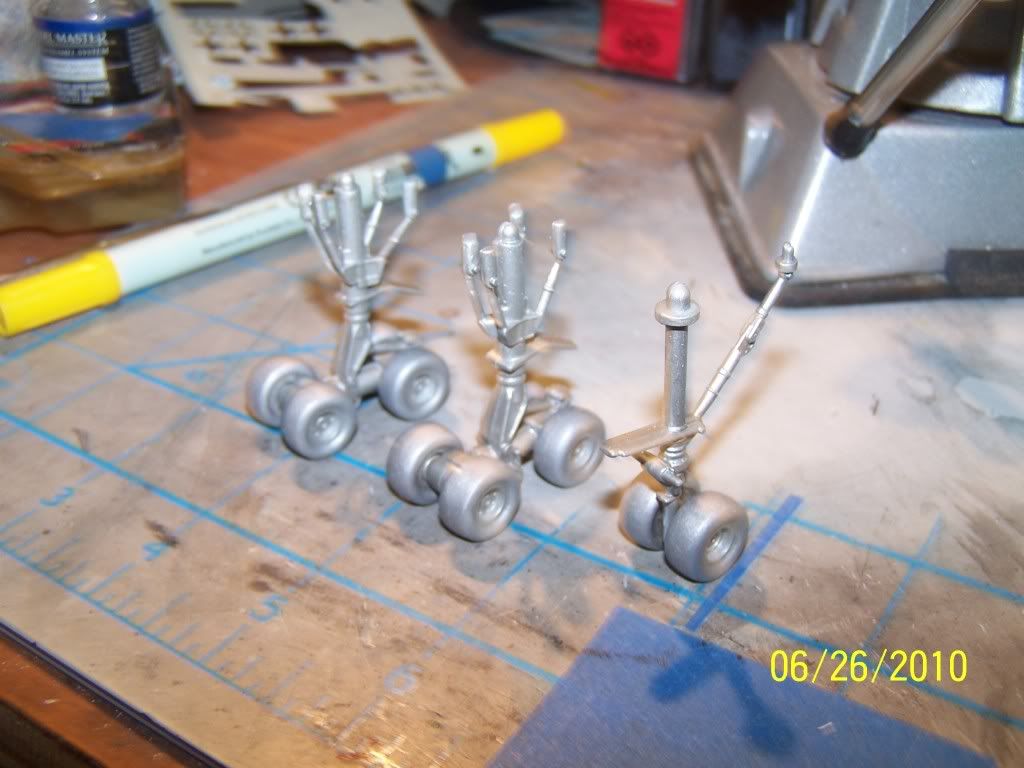

    and finally .... landing gear

    XB-70s WIP - Page 2 100_6093

    XB-70s WIP - Page 2 100_6094

    The wheels are the correct color, aluminum. Due to the heat that the aircraft generates in mach 3 flight the skin temp can hit 400 F + on the cool parts of the fuselage. If standard tires were used and being that close to the skin in the wheel well ran a real good change of blowing due to heat transfer from the outside. The solution was to add an aluminum powder to the tire rubber that would reflect the heat. The wheel were also filled with the gas nitrogen as well to add in the heat problem. The same solution was used on the SR-71.
    avatar
    Guest
    Guest


    XB-70s WIP - Page 2 Empty Re: XB-70s WIP

    Post  Guest Mon Jun 28, 2010 4:44 am

    Got the decals on now...

    XB-70s WIP - Page 2 100_6103

    XB-70s WIP - Page 2 100_6102

    XB-70s WIP - Page 2 100_6099

    XB-70s WIP - Page 2 100_6096

    avatar
    Guest
    Guest


    XB-70s WIP - Page 2 Empty Re: XB-70s WIP

    Post  Guest Mon Jun 28, 2010 4:55 am

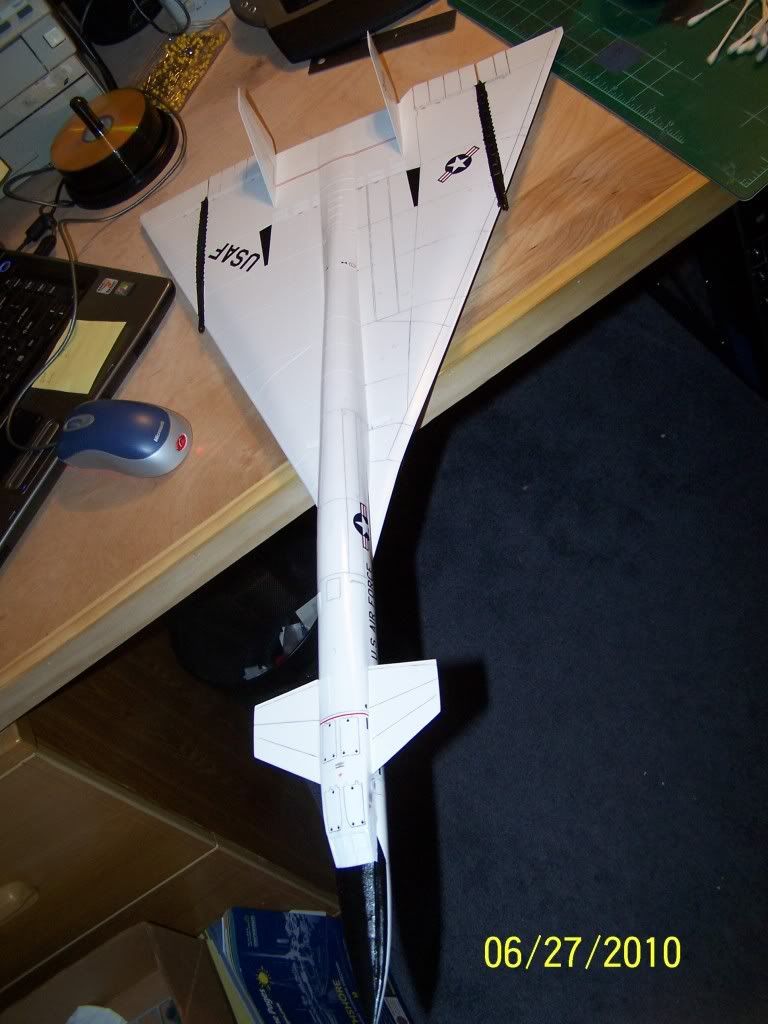

    I have started the panel lines....

    XB-70s WIP - Page 2 100_6107

    XB-70s WIP - Page 2 100_6106

    XB-70s WIP - Page 2 100_6105

    XB-70s WIP - Page 2 100_6104

    I know they are dark but there is so much white I needed something to make it pop and give it a visual interest.
    avatar
    Guest
    Guest


    XB-70s WIP - Page 2 Empty Re: XB-70s WIP

    Post  Guest Sat Jul 03, 2010 5:19 am

    One down ....

    XB-70s WIP - Page 2 100_6126

    XB-70s WIP - Page 2 100_6131

    XB-70s WIP - Page 2 100_6133

    one to go....


    (that is a 6" (15cm) ruler on the back of the model)

    bcauchi
    bcauchi
    Best in Show
    Best in Show


    Posts : 4088
    Join date : 2009-07-30
    Age : 62
    Location : St. Julian's

    XB-70s WIP - Page 2 Empty Re: XB-70s WIP

    Post  bcauchi Sat Jul 03, 2010 1:16 pm

    Exceptional, i love the panel lines, they are really neat, you did a great job of them. Maybe you can lighten them some and use a lighter grey.
    avatar
    Guest
    Guest


    XB-70s WIP - Page 2 Empty Re: XB-70s WIP

    Post  Guest Sat Jul 03, 2010 4:01 pm

    bcauchi wrote:Exceptional, i love the panel lines, they are really neat, you did a great job of them. Maybe you can lighten them some and use a lighter grey.

    I thought about a med to light gray at first but changed my mind. I felt that the amount of gloss white would still over power the gray. So I went ahead with black. Is is realistic? not really, but it is eye catching and that is what I was going for.

    Did learn a few things to do differently on the second XB-70. However I want to do major surgery to get a 5 degree dihedral in the wings (aircraft #2 had that for better stability.) Still trying to figure a way to do that...
    bcauchi
    bcauchi
    Best in Show
    Best in Show


    Posts : 4088
    Join date : 2009-07-30
    Age : 62
    Location : St. Julian's

    XB-70s WIP - Page 2 Empty Re: XB-70s WIP

    Post  bcauchi Sun Jul 04, 2010 8:22 am

    I would use a brass rod or square section straight through the fuselage and set the angles you require for the wings. Then mount the wings on the brass rod/s. This will give stability to your wings. you will inevitably end up with a gap which you will have to fill but that is something which you cannot help. Fill it with plastic strip or filler.
