    Post  5Nige on Sat Apr 27, 2013 6:55 pm

    On to the next one, finally after 2 a 2 year absence this will be a Formula 1 car Laughing . The Leyton House CG901 is from the 1990 season, incidentally the first one designed by the now mythical Adrian Newey (whose cars won championships for Williams, McLaren and now Red Bull). An eye catcher due to both its innovative design as well as being the one car which challenged, albeit briefly, the McLaren MP4/5B with whch Ayrton Senna won that year's title.

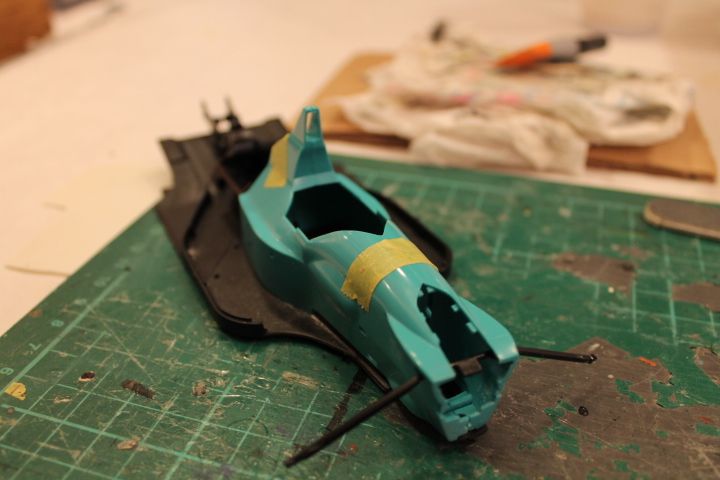

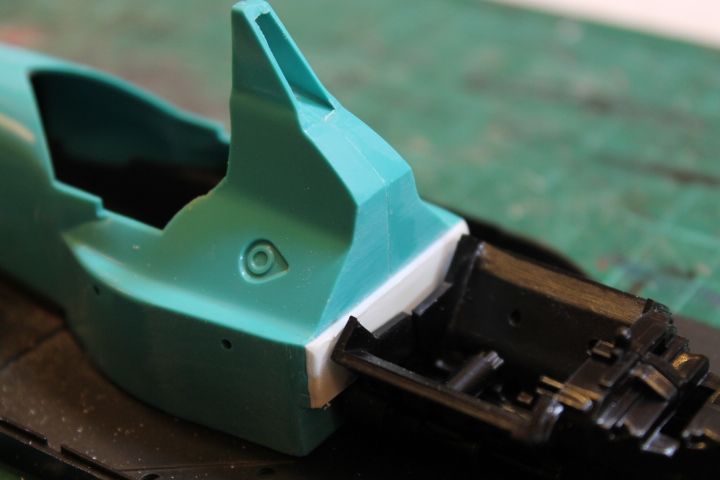

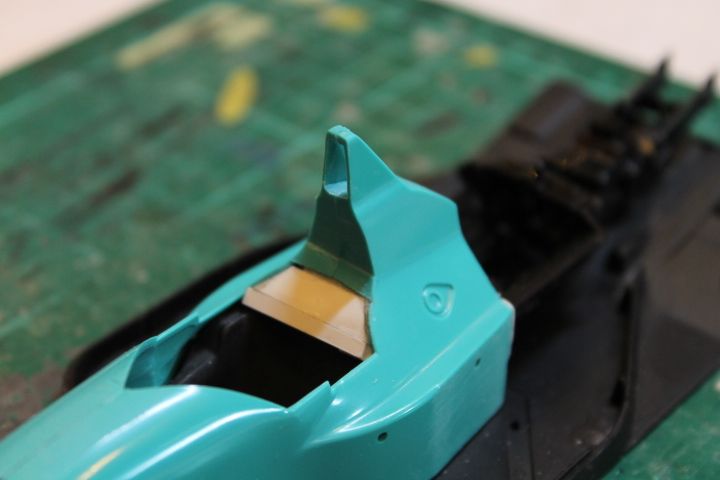

    On for the build now, kit is Tamiya 1:20 scale, and I am aiming to detail as much as possible. Work began during the last Expo, where after some test fits the monocoque chassis (i.e. front) was joined and corrected, frame for the top open part was scratch built, and the side radiator housings were separated from the molded electronics boxes (thanks to Hubert here pale )

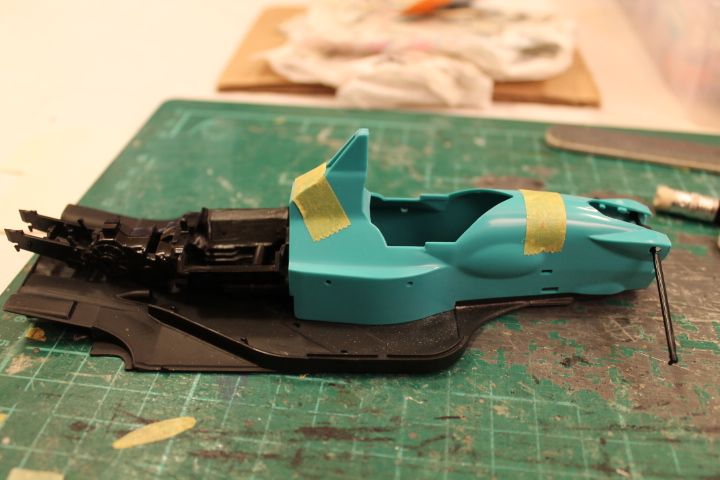

    Leyton House CG901B LeytonHousebox_zps249d9af9

    Leyton House CG901B IMG_1219_zpse4577fb7

    Leyton House CG901B IMG_1220_zps88506f79

    Leyton House CG901B IMG_1226_zps842d1f57

    Leyton House CG901B IMG_1227_zps54cb430a

    Leyton House CG901B IMG_1298_zps597b8241

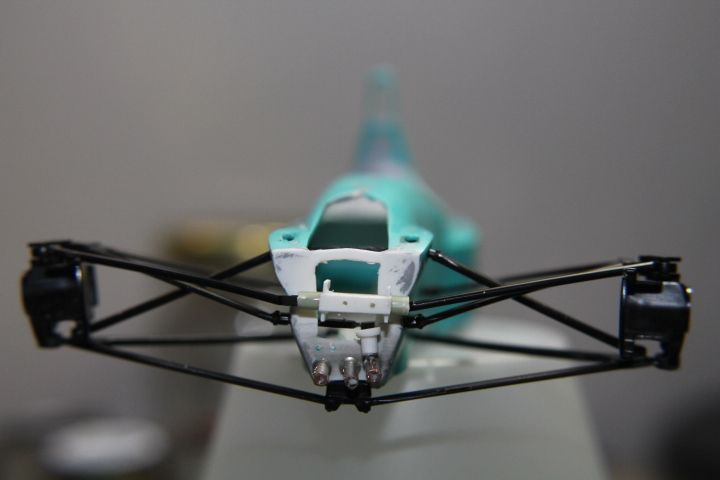

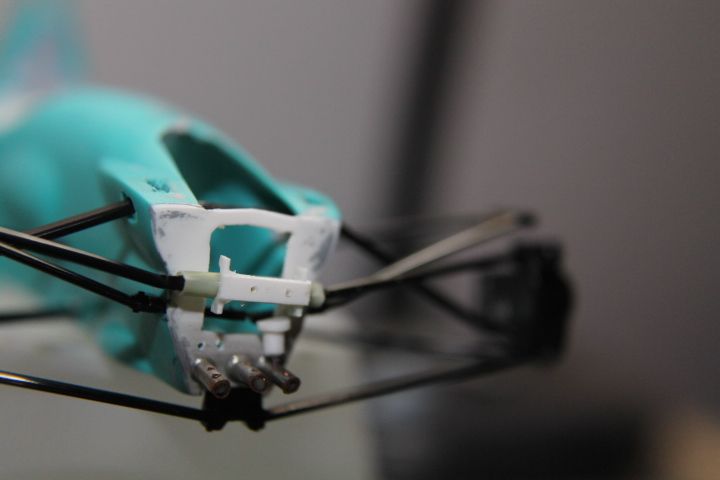

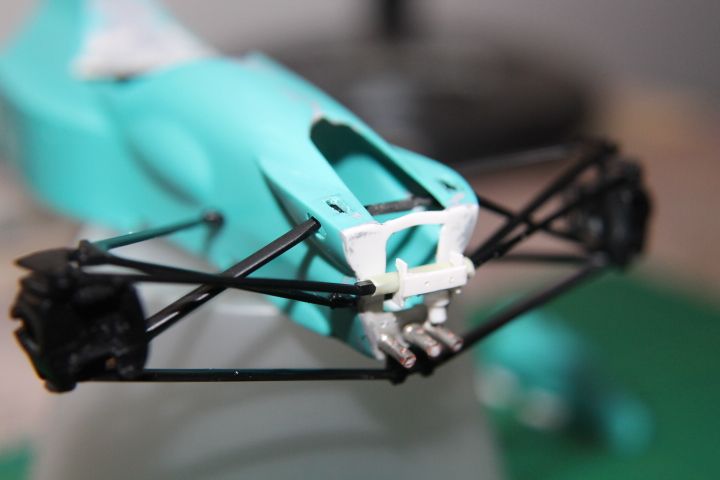

    The front end has now been completed, and a dry fit test was effected. Improvements here are scratch building of the bulkhead, separating the upper and lower front suspension arms (so that they can fit within the new scenario), scratchbuilding of 3 hyraulic pumps from steel tube and hydraulic reservoirs from plastic rod, fitting of the steering system and the overlying frame to hold 2 hydraulic reservoirs, plus 2 brackets which will hold the steering rod housing to the bulk head. Obviously the necessary wiring/brake lines will be added after fitting. The 'hole' in front of the cockpit is to house the coil overs which still need to be scratch built.

    Leyton House CG901B IMG_1475_zpsbc285f39

    Leyton House CG901B IMG_1478_zps66037844

    Leyton House CG901B IMG_1485_zps8258d5df

    Leyton House CG901B IMG_1489_zps978d63a7

    Leyton House CG901B IMG_1491_zps6f1c5fe8

    Now on to the paint and finish shop, where I can't wait to put on the colour and start part of the heavy carbon fibering involved.
