    Post  5Nige on Sat Feb 09, 2013 12:47 pm

    My next project is a detailed build of the Lancia Stratos Rally car which dominated the world rally series in the late 70s. The kit is in 1/24 scale by Revell.

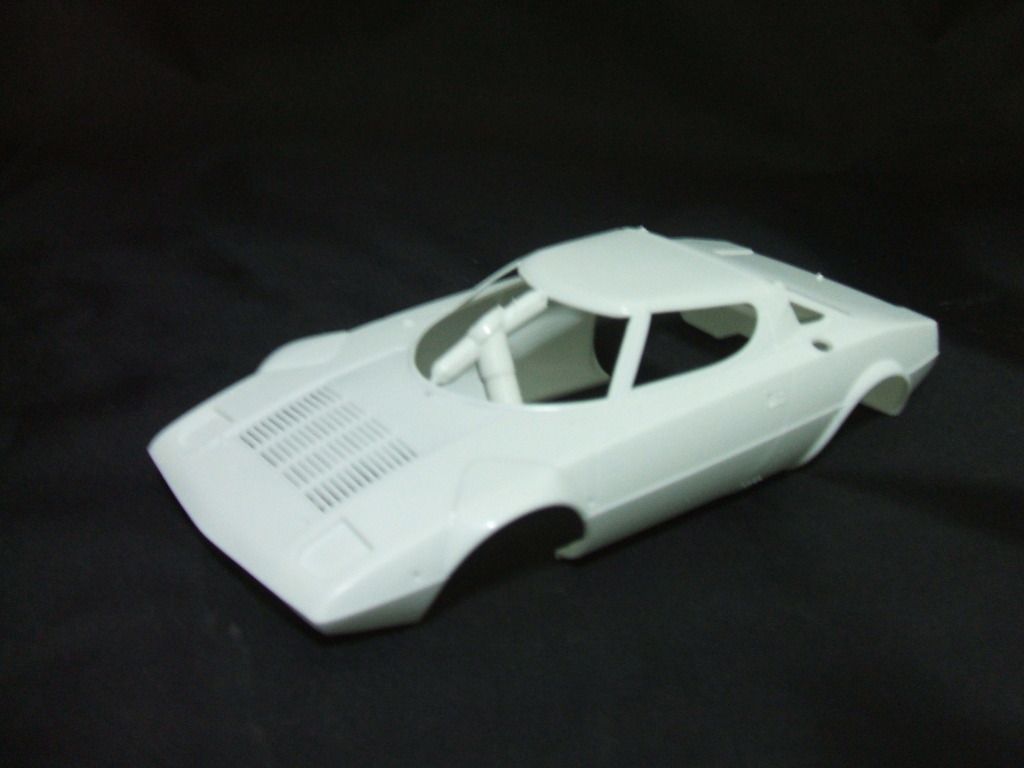

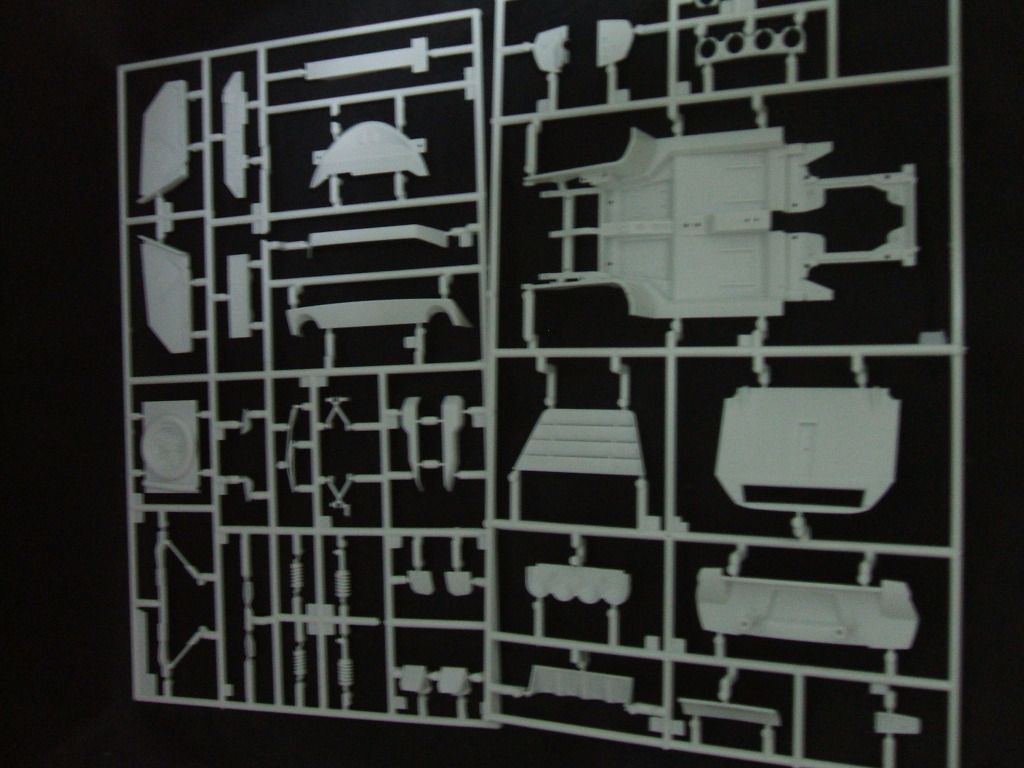

    The starting point:

    Lancia Stratos WRC 1977 DSCF6312_zpsd5b49195

    Lancia Stratos WRC 1977 DSCF6302_zpsb05a6d5b

    Lancia Stratos WRC 1977 DSCF6304_zpsadf465e0

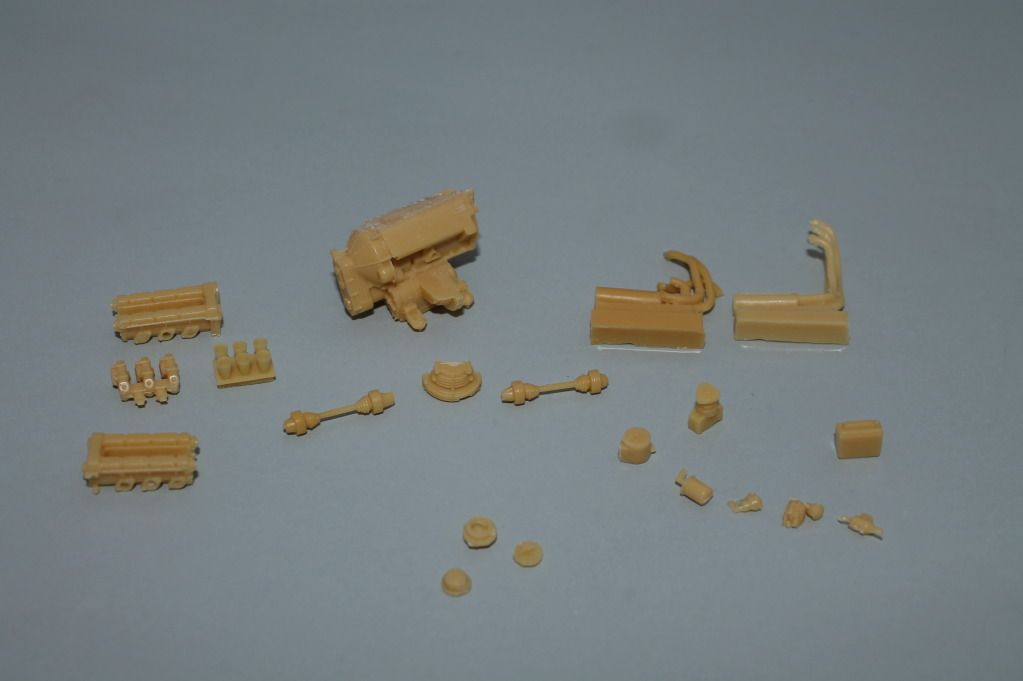

    I managed to get a photo etch set as well as a resin V6 engine, both by Reji Model.

    Lancia Stratos WRC 1977 IMG_0679_zps14b67aa3

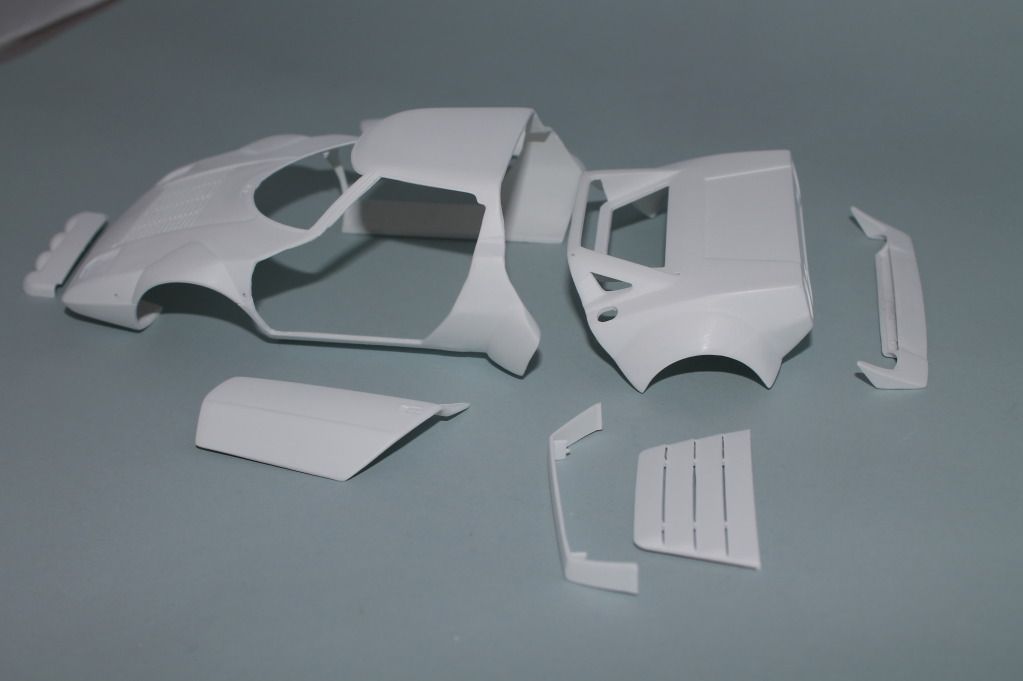

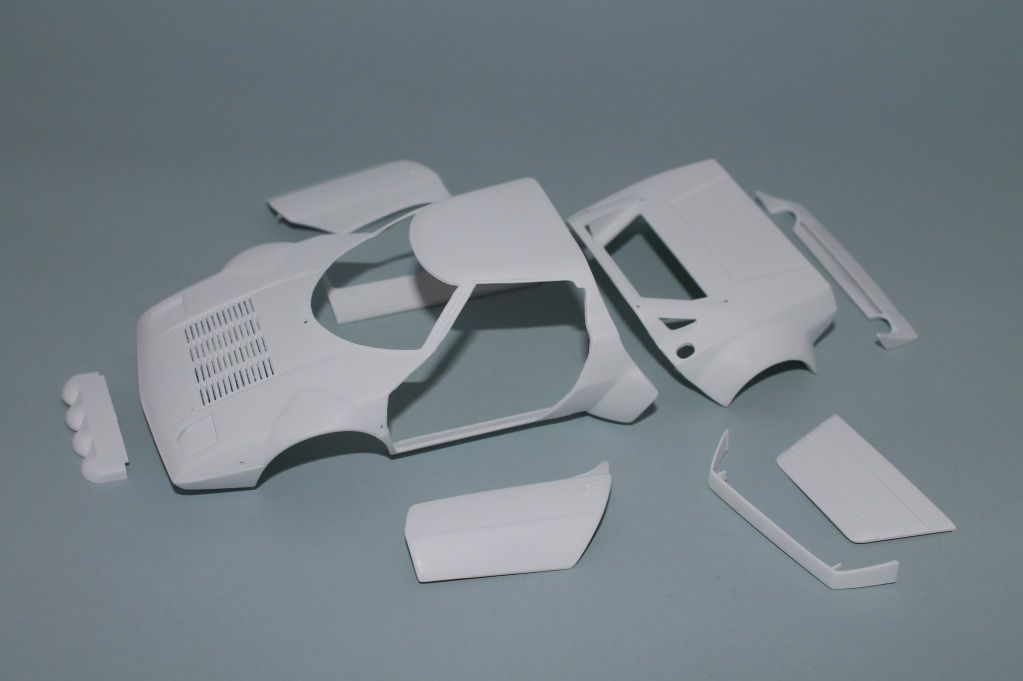

    The starting point to this journey of pleasure, frustration, anger, annoyance and delight all rolled in one was the chopping off of the side doors and rear engine cover. This proved to be a delicate step and was achieved first by deepening the panel lines with a thin scriber then separating with a thin photo etch saw. Most delicate were (and still are) the front pillars which are no more than 4mm in width each. It is my intention to display the car with open doors and a detached rear engine cover.

    Lancia Stratos WRC 1977 IMG_0681_zps554dbf02

    Lancia Stratos WRC 1977 IMG_0684_zps63c36433


    Interior

    I then decided to proceed with the interior,pity that most of the detailing will be hidden but a complete job requires such.

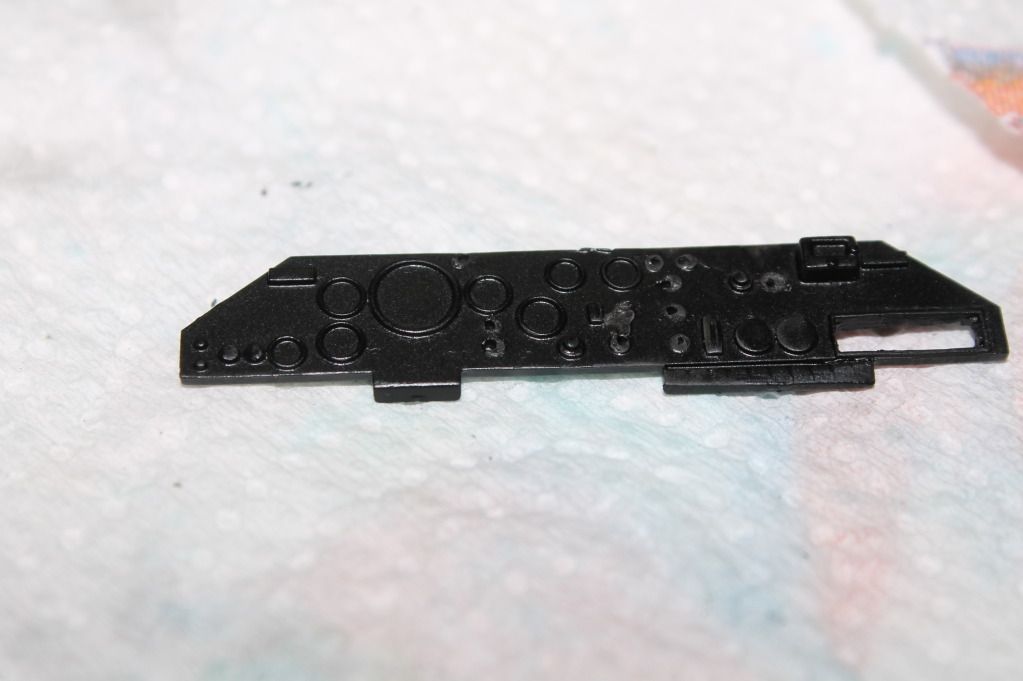

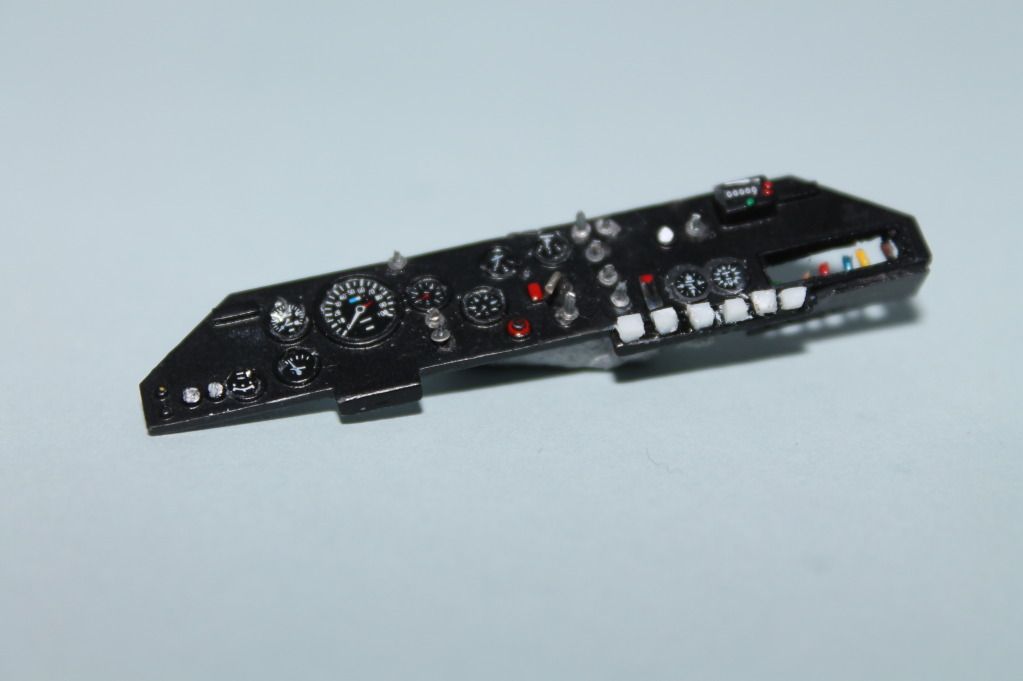

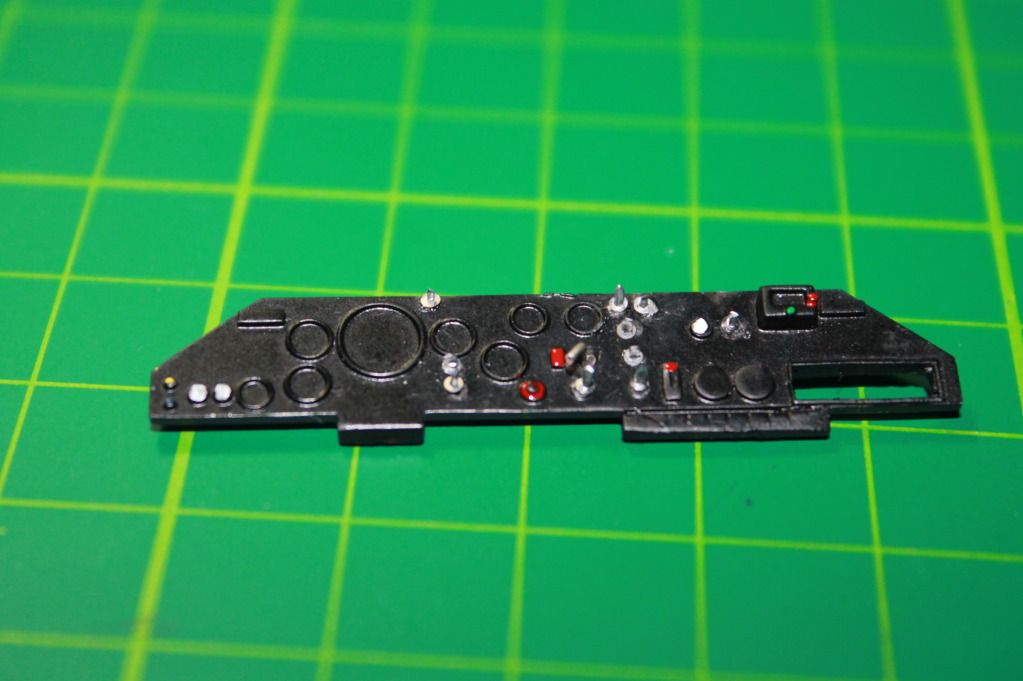

    First for treatment was the dashboard, measuring no more than 5cm. Here the molded switches were chopped off, and instead a 5mm washer with a thin piece of flattened steel wire were installed, simulating the flip switches so common in those days. Then the side fuses panel was removed and individual ones added, followed by a panel of square white switches. To round it off decals were added.

    Lancia Stratos WRC 1977 IMG_0578_zpsf08ef27c

    Lancia Stratos WRC 1977 IMG_0569_zps686ee42a

    Lancia Stratos WRC 1977 IMG_0584_zps705f4e1e

    Lancia Stratos WRC 1977 IMG_0696_zps533c4f42

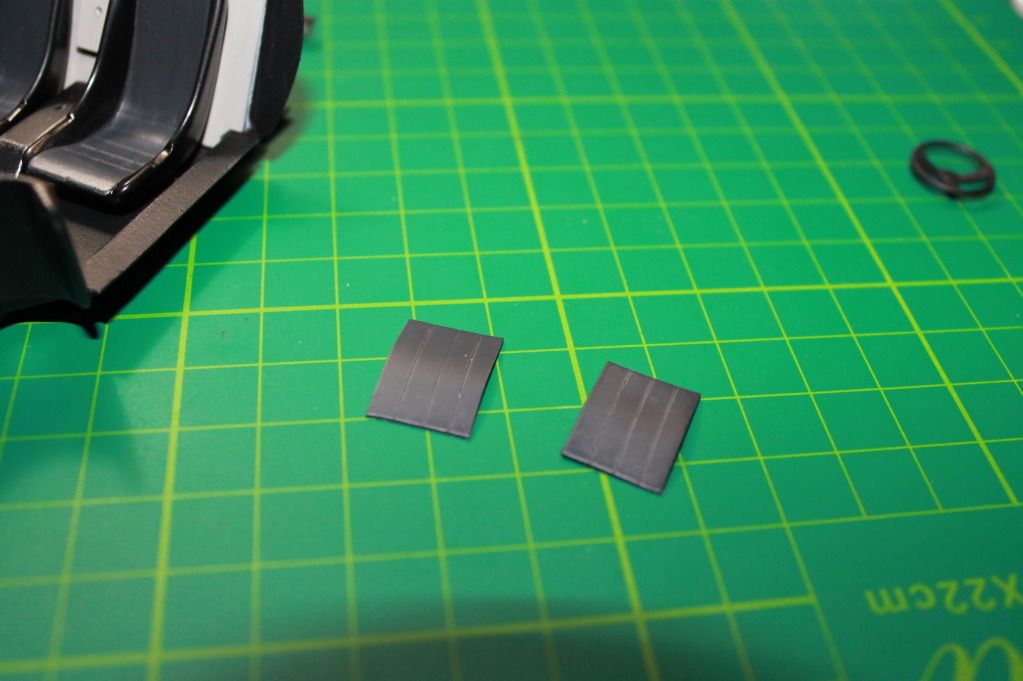

    The seats were not an exact replica, in that the flat part was actually curved. Here separate styrene sheets, curved upwards were added and when installed the underneath was filled with foam, as in the real thing. Seat belts, with etch buckles were added.

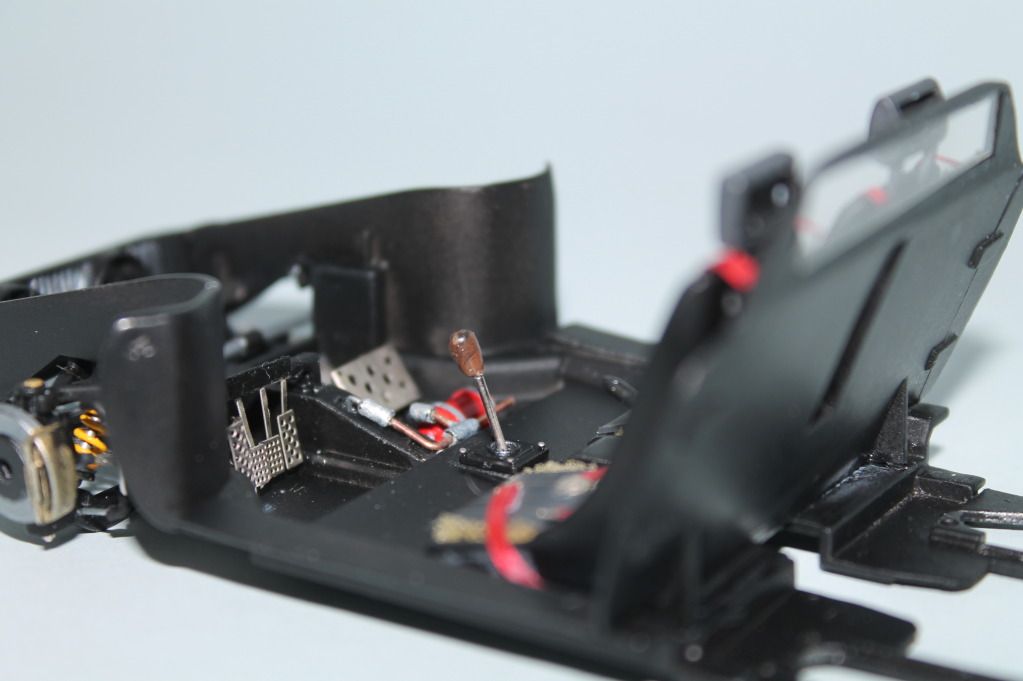

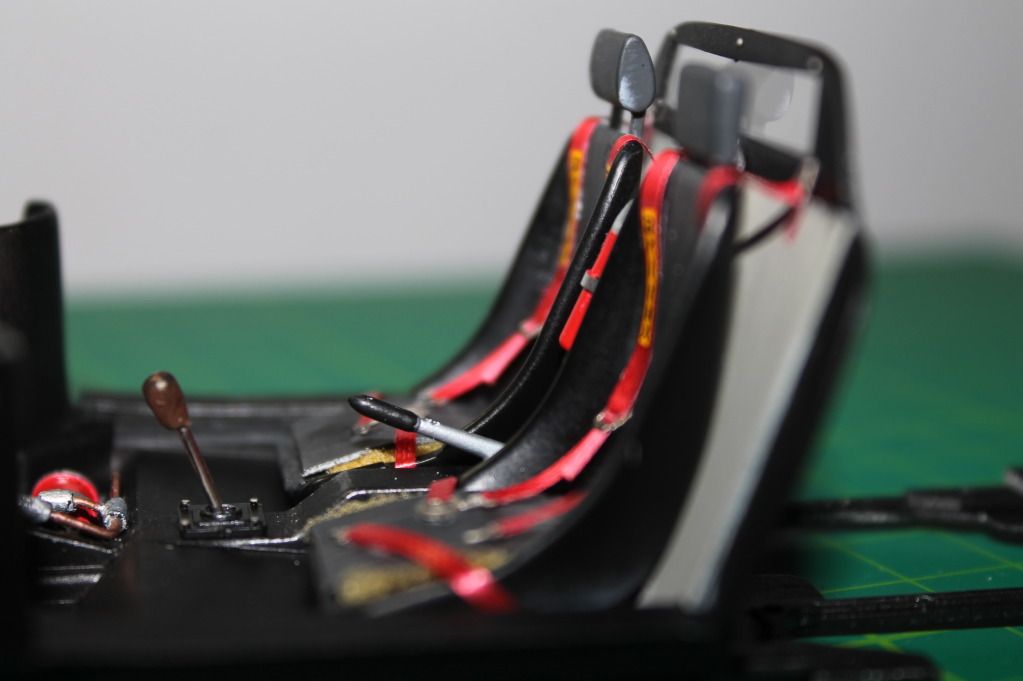

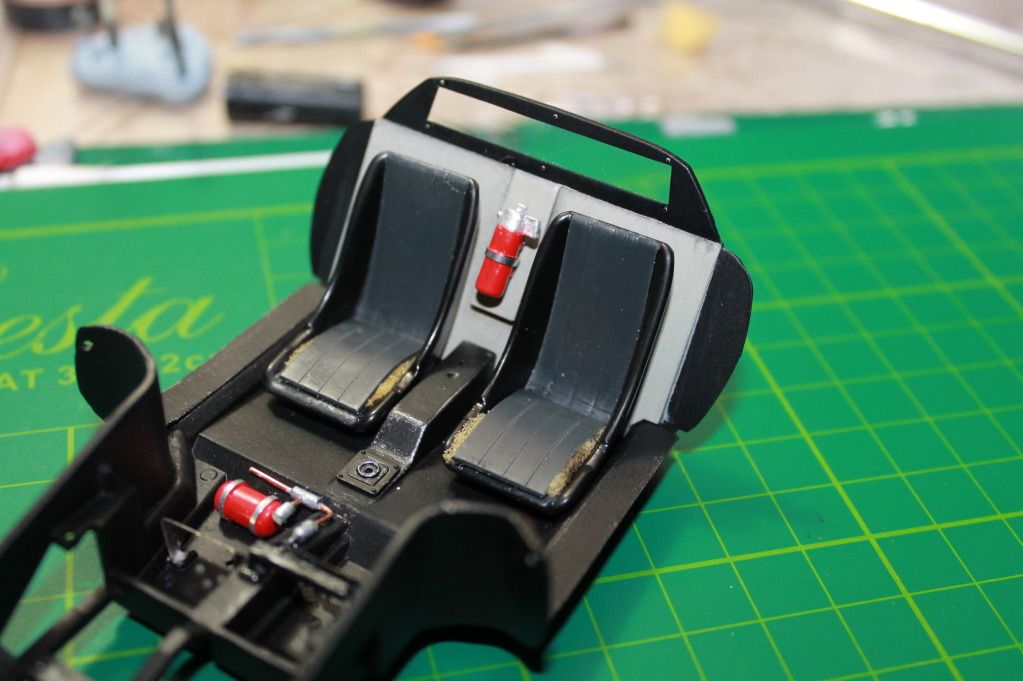

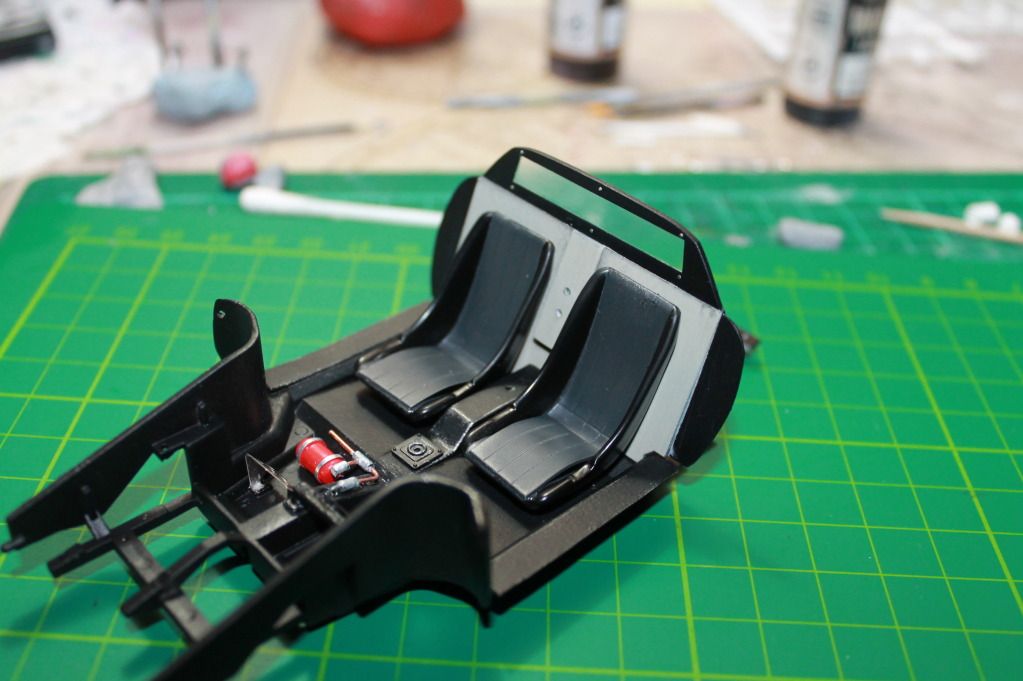

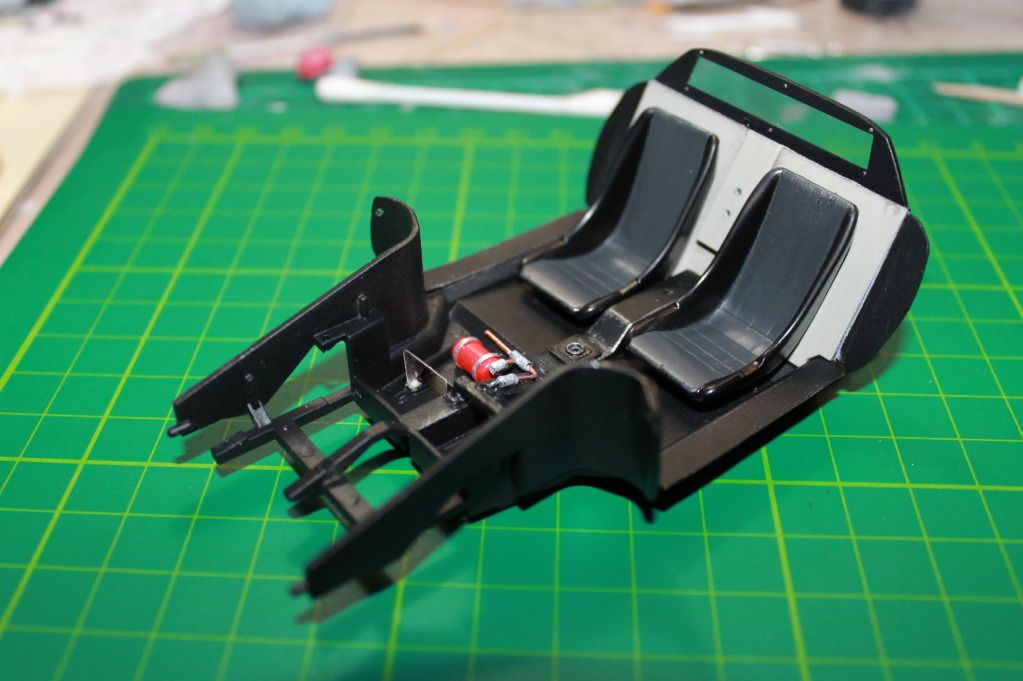

    Also included were the front pedals, foot rests, extinguisher with plumbing, gear and brake levers. The gear lever shaft was replaced.

    Lancia Stratos WRC 1977 IMG_0611_zpsbe093a70

    Lancia Stratos WRC 1977 IMG_0612_zpsd87b5485

    Lancia Stratos WRC 1977 IMG_0613_zps9bd9a62f

    Lancia Stratos WRC 1977 IMG_0615_zps0c34bc3f

    Lancia Stratos WRC 1977 IMG_0663_zps629bc679

    Lancia Stratos WRC 1977 IMG_0687_zps86636e30

    More to soon follow.
    el manolo
    el manolo
    Bronze
    Bronze

    Posts : 287
    Join date : 2012-03-15
    Age : 34

    Lancia Stratos WRC 1977 Empty Re: Lancia Stratos WRC 1977

    Post  el manolo on Sat Feb 09, 2013 1:08 pm

    good job so far.
    bcauchi
    bcauchi
    Best in Show
    Best in Show

    Posts : 4088
    Join date : 2009-07-30
    Age : 58
    Location : St. Julian's

    Lancia Stratos WRC 1977 Empty Re: Lancia Stratos WRC 1977

    Post  bcauchi on Sat Feb 09, 2013 2:50 pm

    Looking great, very nice neat work.
    skyhigh
    skyhigh
    Best in Show
    Best in Show

    Posts : 4654
    Join date : 2009-07-30
    Age : 58
    Location : Qormi, Malta

    Lancia Stratos WRC 1977 Empty Re: Lancia Stratos WRC 1977

    Post  skyhigh on Sat Feb 09, 2013 5:32 pm

    Good detail... cheers
    Ray
    Ray
    Best in Show
    Best in Show

    Posts : 6102
    Join date : 2009-07-21
    Age : 56
    Location : Zurrieq MALTA

    Lancia Stratos WRC 1977 Empty Re: Lancia Stratos WRC 1977

    Post  Ray on Sat Feb 09, 2013 6:29 pm

    Great work so far Twisted Evil
    5Nige
    5Nige
    Commended
    Commended

    Posts : 95
    Join date : 2012-12-23
    Age : 48
    Location : B'Kara

    Lancia Stratos WRC 1977 Empty Re: Lancia Stratos WRC 1977

    Post  5Nige on Sat Feb 09, 2013 9:07 pm

    Time for another update. Thanks for all the encouragement guys!

    The doors interior upholstery was next. However before this the upholstery sides were re-done using plasticard so as to allow space for the side windows. The navigator side also had a small pocket, used for keeping navigation maps (no GPS those days!) and this was also scratched from plasticard.

    Lancia Stratos WRC 1977 IMG_0544_zps93287090

    Lancia Stratos WRC 1977 IMG_0558_zps3b8c6c00

    As you note the hinge to keep the doors open was added. This however required the completion of a spacer (again plasticard) in order to complete the car interior to the body and also to allow for insertion.

    Lancia Stratos WRC 1977 DSCF6330_zps47a0c764


    The front end.

    Well these details will unfortunately be hidden but had to do them in order to achieve a complete transformation. Essentially here the coil overs were re done in replacement of the kit molded ones, tension bars to each wheel strut added, brake lines, various bolts and water plumbing added. The radiator faces are etch parts from the Reji set.

    Lancia Stratos WRC 1977 IMG_0667_zpsc3c8ada4

    Lancia Stratos WRC 1977 IMG_0658_zps28109d4b

    Lancia Stratos WRC 1977 IMG_0657_zpsc9bf72f5

    Lancia Stratos WRC 1977 IMG_0656_zps827feb6d

    Lancia Stratos WRC 1977 IMG_0642_zps37daed47

    Lancia Stratos WRC 1977 IMG_0654_zps7fa4d0d5

    The engine

    With the front end and interior out of the way the engine was next. Test fits:

    Lancia Stratos WRC 1977 IMG_0694_zpse932be25

    Lancia Stratos WRC 1977 IMG_0693_zpsb8272a3c

    The only issue arising from the first dry fit were the rather short mountings. This was solved via the addition of a piece of aluminium plate to get the required length. This was important as these will be holding the engine onto the body. Engine was painted with Alclad Aluminium then given a wash of black and sepia. The spark plug cables were added, however fitting 6 of these and leaving a space for one on the distributor took a lot of patience, some swearing and gallons of tea!

    Lancia Stratos WRC 1977 IMG_0763_zpscafa8d88

    Lancia Stratos WRC 1977 IMG_0761_zps4ac4474e

    Lancia Stratos WRC 1977 IMG_0759_zps830b9087

    For pulleys the resin ones were used, and after cleaning they were glued in place and the belt added - actually Tamiya tape painted black from both sides.

    Lancia Stratos WRC 1977 IMG_0758_zps4ad88178

    Exhausts were next, but the resin ones were no good so keeping the kit end parts the actual exhausts were made out of brass tube. Given that for the front set these had to curve over the differential shaping of the exhausts took a morning session.

    Lancia Stratos WRC 1977 IMG_0869_zpsd310ca1a

    Lancia Stratos WRC 1977 IMG_0874_zps95708425

    Lancia Stratos WRC 1977 IMG_0867_zps855328dd

    Lancia Stratos WRC 1977 IMG_0865_zps812ab96b

    Lancia Stratos WRC 1977 IMG_0892_zpsf6d36559

    Next were the fuel tanks, scratch built from wood and covered in plasticard. the bracket was shaped out of aluminium and 0.6mm rivets used to hold the bracket to the tank.

    Lancia Stratos WRC 1977 IMG_0861_zps5359596e


    Next steps to include scratch building the oil tank, rear suspension frame and the actual fitting of the engine and completion of the engine bay.
